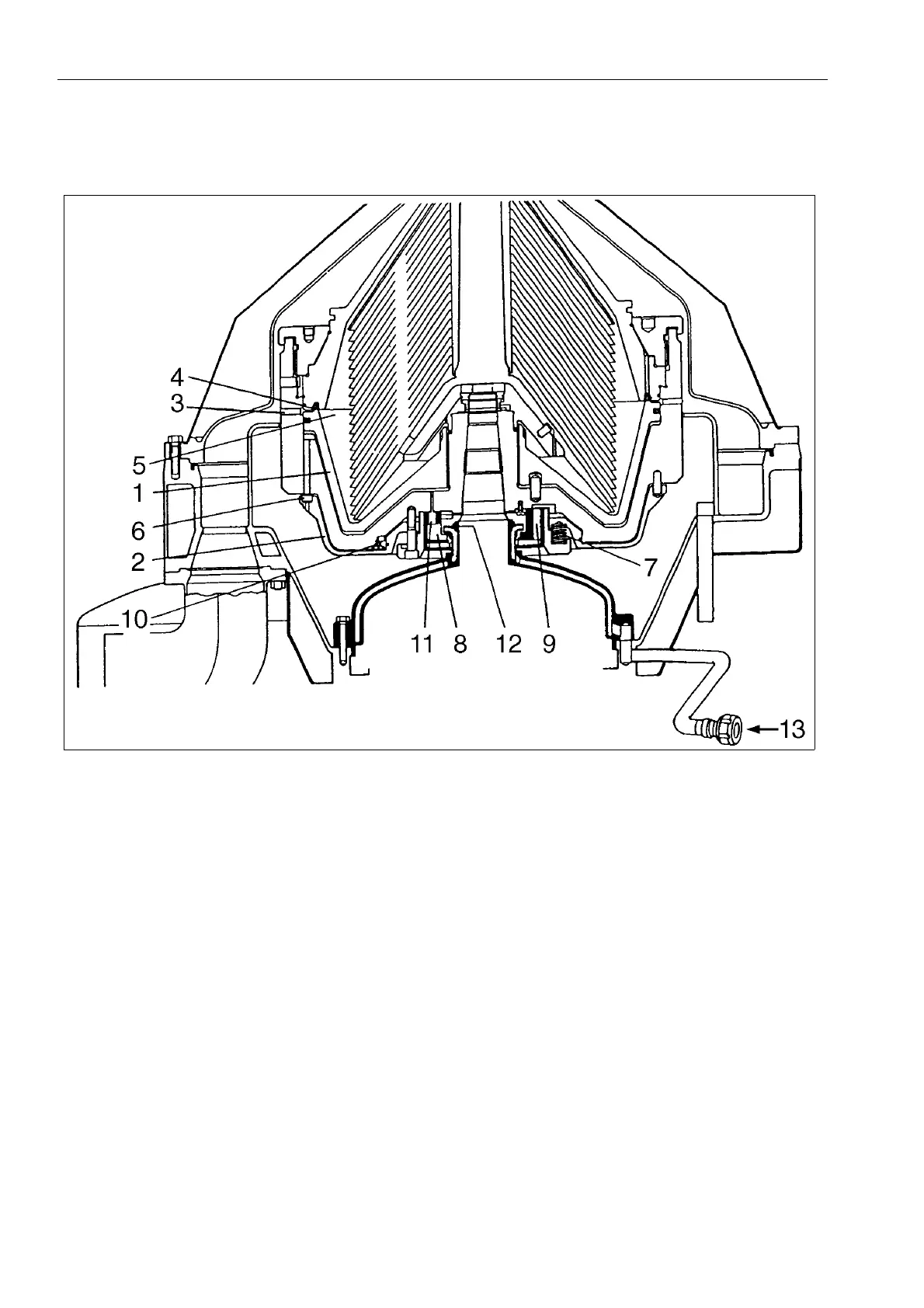

4.1 Function description
Bowl
1. Sliding bowl bottom
2. Operating slide
3. Sediment ports
4. Seal ring
5. Sediment space
6. Valve plugs
7. Coil springs
8. Closing water chamber
9. Opening water channel
(discharge)
10. Draining nozzle
11. Closing water channel
12. Control paring disc
13. Operating water supply from
the OWMC, see
‘‘4.2
Operating water module
compact (OWMC)” on page
38
G0569041
