3.2 Brake 3 Mechanical function
26

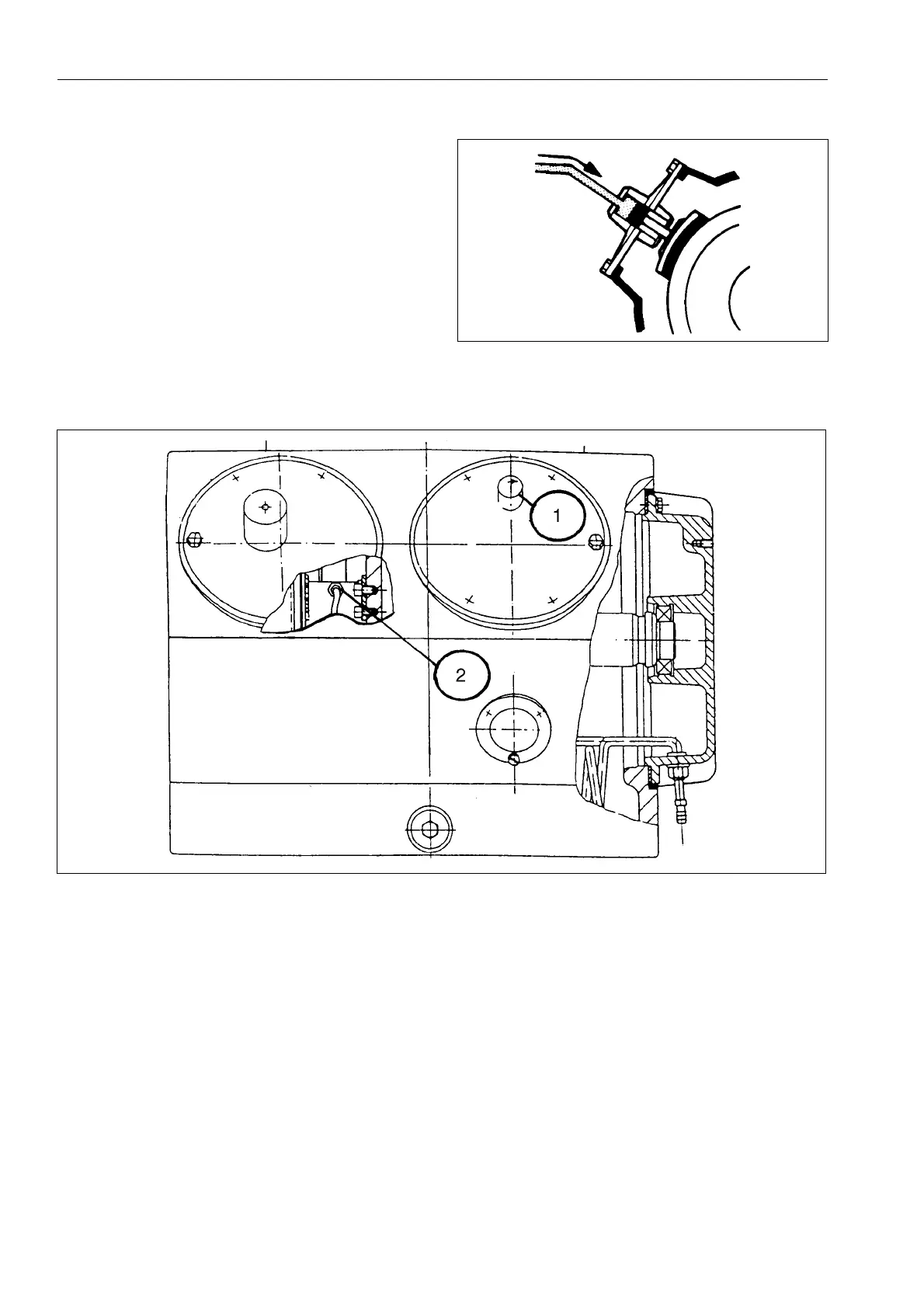

3.3 Brake
To shorten the bowl retardation time and thus
quickly pass the critical speed, the brake must
always be used when the machine is to be
stopped.
The machine is provided with a pneumatic brake,
which is actuated when compressed
(max. 400 kPa) air is supplied.
3.4 Speed indication
Revolution counter
For manual speed checks, the machine is
provided with a revolution counter. The correct
number of revolutions per minute for the machine
is given on the type plate and / or on the data
sheet for the type of machine in question, see
“Technical data” in
Installation Manual
.
S0118411
G0695611
1. Revolution counter
2. Speed sensor for remote indication
