3.8 Bowl 3 Mechanical function
34
Single phase separators

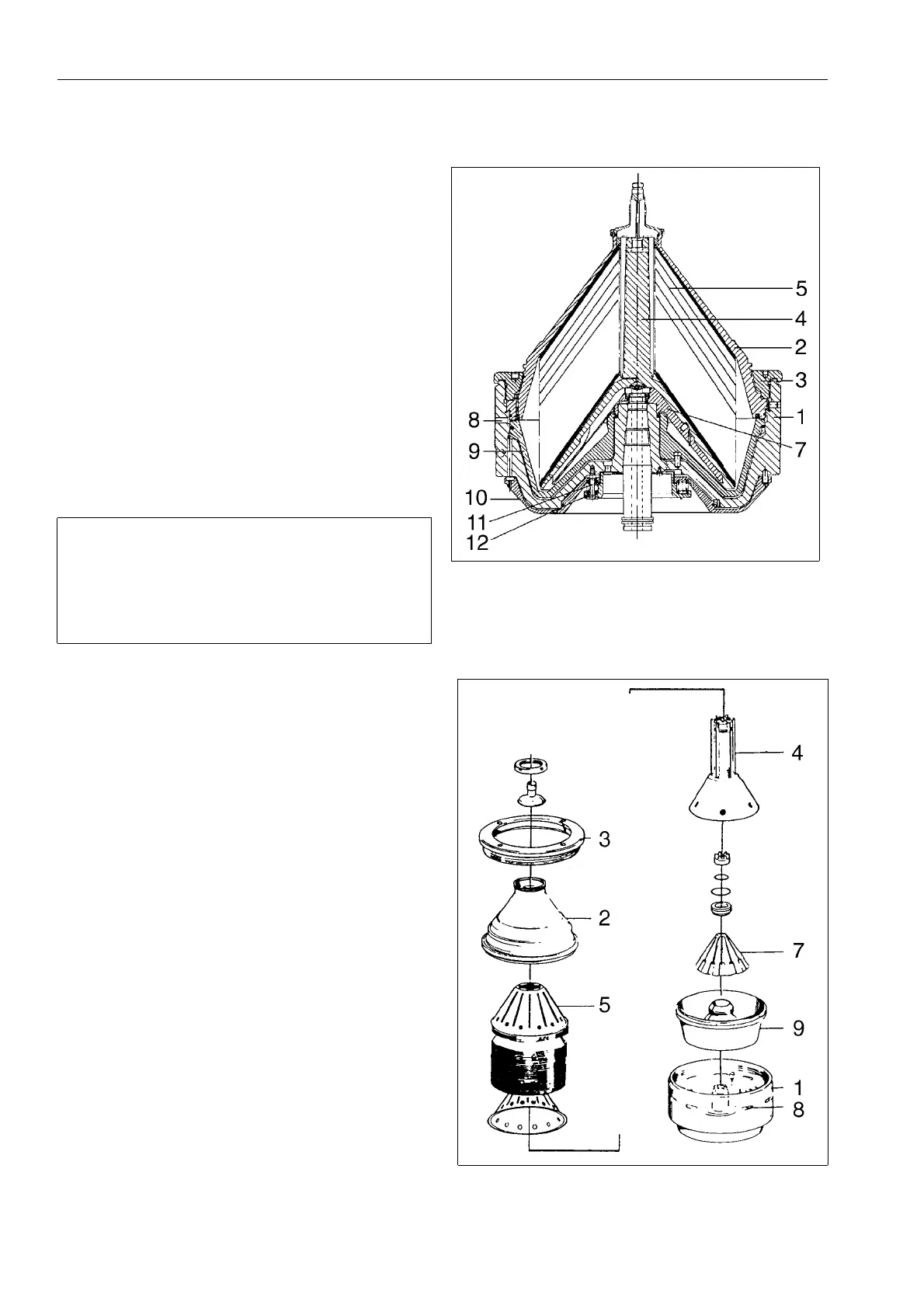

The bowl body (1) and the bowl hood (2) which
make up the casing of the bowl are held together
by the large lock ring (3).
Housed in the bowl are the distributor (4),
distributing cone (7) and the disc stack (5), where
the separation takes place.
The parts by which the sediment discharges are
effected are marked with an asterisk (*) in the list
below. The sediment discharge function is
described in another section of this book, see
‘‘4.1 Function description” on page 36.
Replacement of certain parts necessitates
rebalancing if the bowl. Such parts are specially
indicated in the
Spare Parts Catalogue
.
1. Bowl body
2. Bowl hood
3. Lock ring (large)
4. Distributor
5. Bowl discs
6. -
7. Distributing cone
8. Sediment port
9. Sliding bowl bottom*)
10. Operating slide*)
11. Spring*)
12. Spring support*)
NOTE
The bowl must only be disassembled /
assembled by personnel with the proper
training.
G0699121
G0694911
