23
Version 1.01

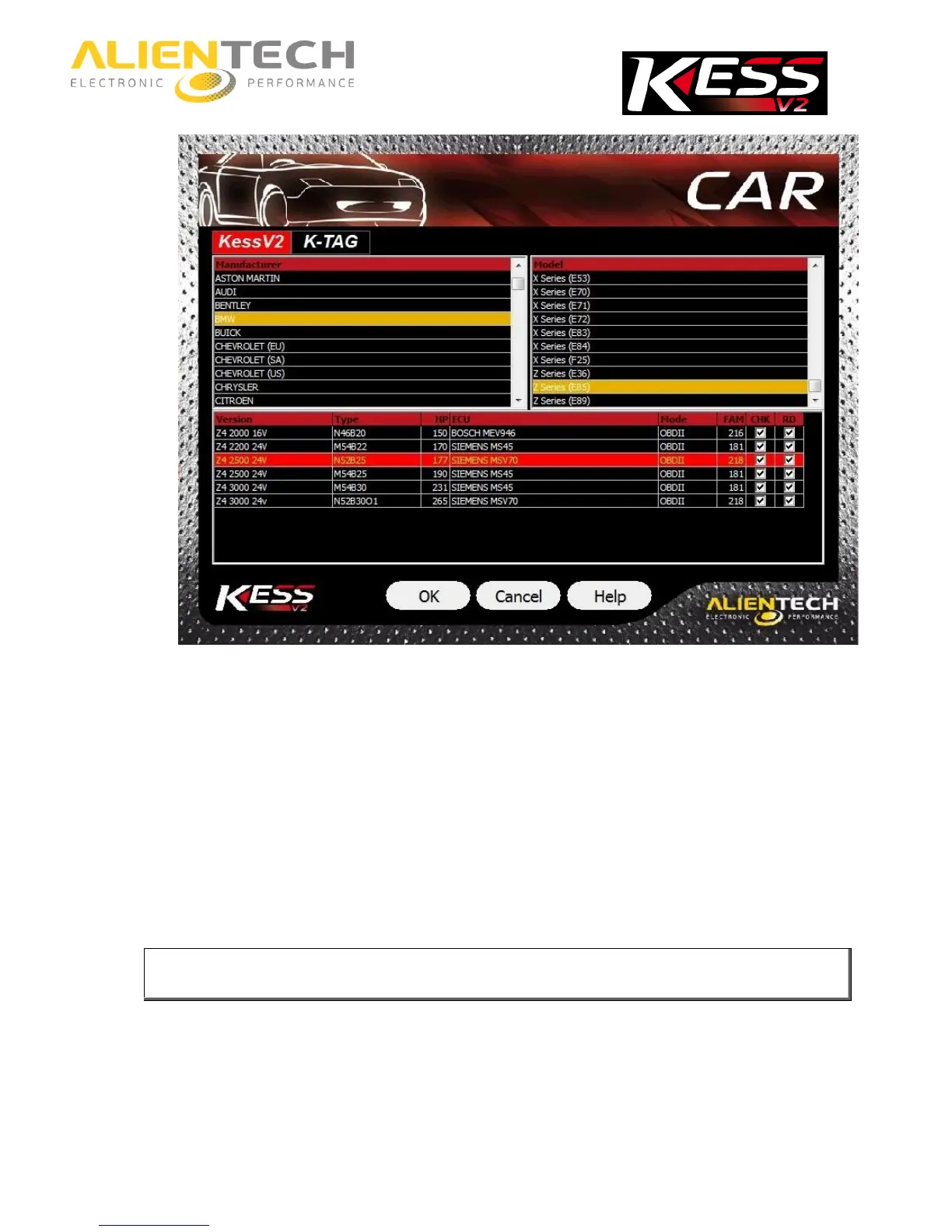

Type: The type of engine installed.
HP: The engine power.
ECU: The type of ECU installed on the vehicle.
Mode: The connection mode to the vehicle and / or the ECU, that is:
OBDII for connections to be made via the diagnostic connector of the vehicle.
TRICORE for connections to be made in boot mode on engine control units equipped with
Infineon Tricore microprocessor.
BOOT ST for connections to be made in boot mode on engine control units equipped with
ST microprocessor.
BOOT for connections to be made on bench in boot mode on engine control units equipped
with TEMIC engine.
To make connections in boot mode with KESSv2 on engine control units equipped with
microprocessor Infineon Tricore, you must use the Infineon Tricore Module, sold separately.
FAM: The number of the Family to use to communicate with the vehicle.
CHK: The check mark indicates that the Checksum control is available. Checksum control is
available for all OBDII and Tricore Families of KESSv2. For ST10Fxxx Families, the Checksum
is available if the writing is performed via OBDII; if, instead, the programming is done on
bench you should check the Checksum in another way.
