About this task

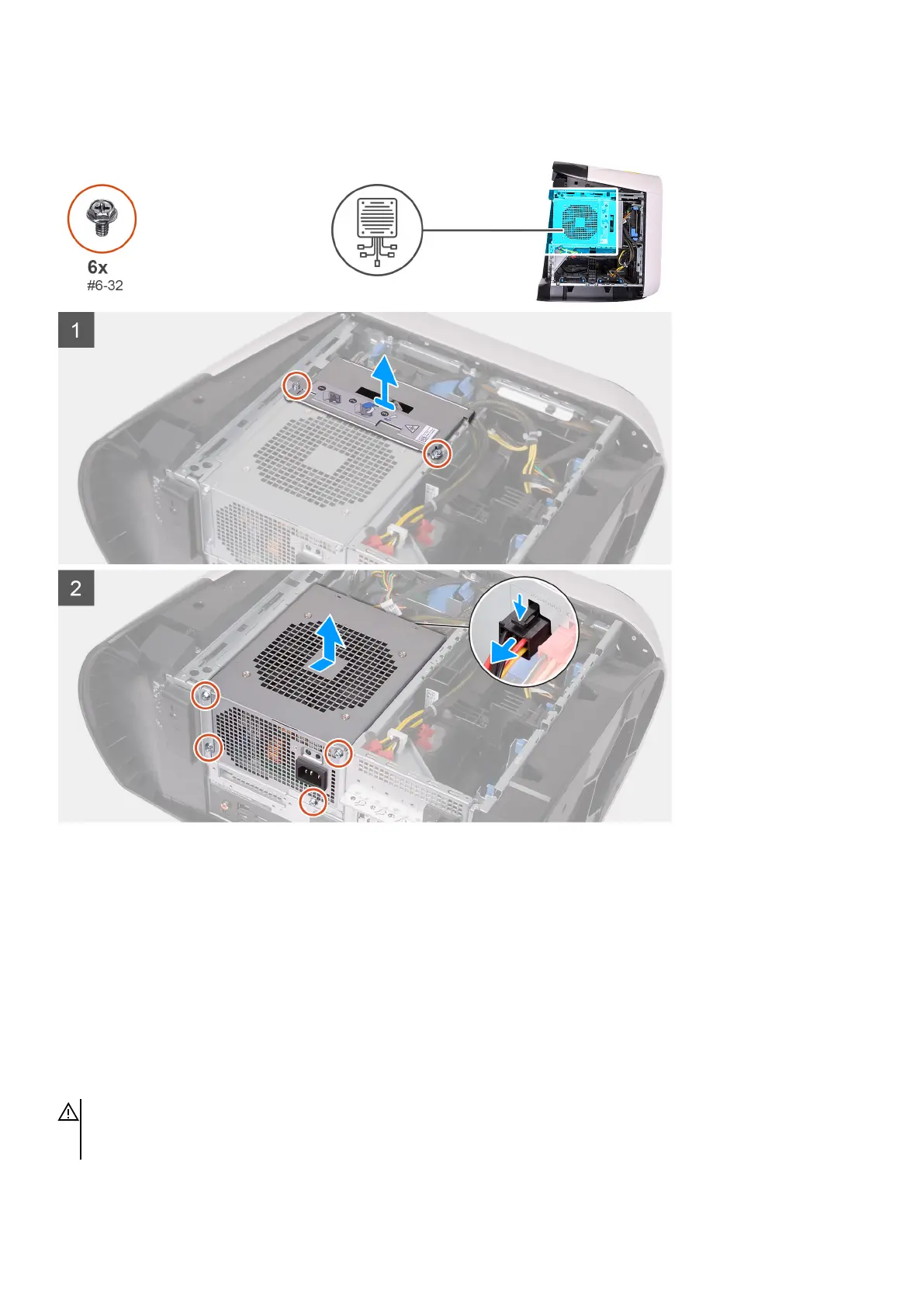

The following images indicate the location of the power-supply unit and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (#6-32) that secure the power-supply unit bracket to the power-supply unit cage.
2. Lift the power-supply unit bracket off the power-supply unit cage.
3. Press the releasing clip on the power-cable connectors and disconnect all the power cables from the power-supply unit.
4. Remove the four screws (#6-32) that secure the power-supply unit to the chassis.
5. Slide and lift the power-supply unit, along with the cables, off the chassis.
Installing the 850 W power-supply unit
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
WARNING: The cables and ports on the back of the power-supply unit are color-coded to indicate the different power
wattage. Ensure that you plug in the cable to the correct port. Failure to do so may result in damaging the power-supply
unit and/or system components.
