Front AlienFX LED boards
Removing the front AlienFX LED board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the left-side cover.
3. Remove the right-side cover.
4. Remove the
top-cover.
5. Remove the front bezel.
About this task

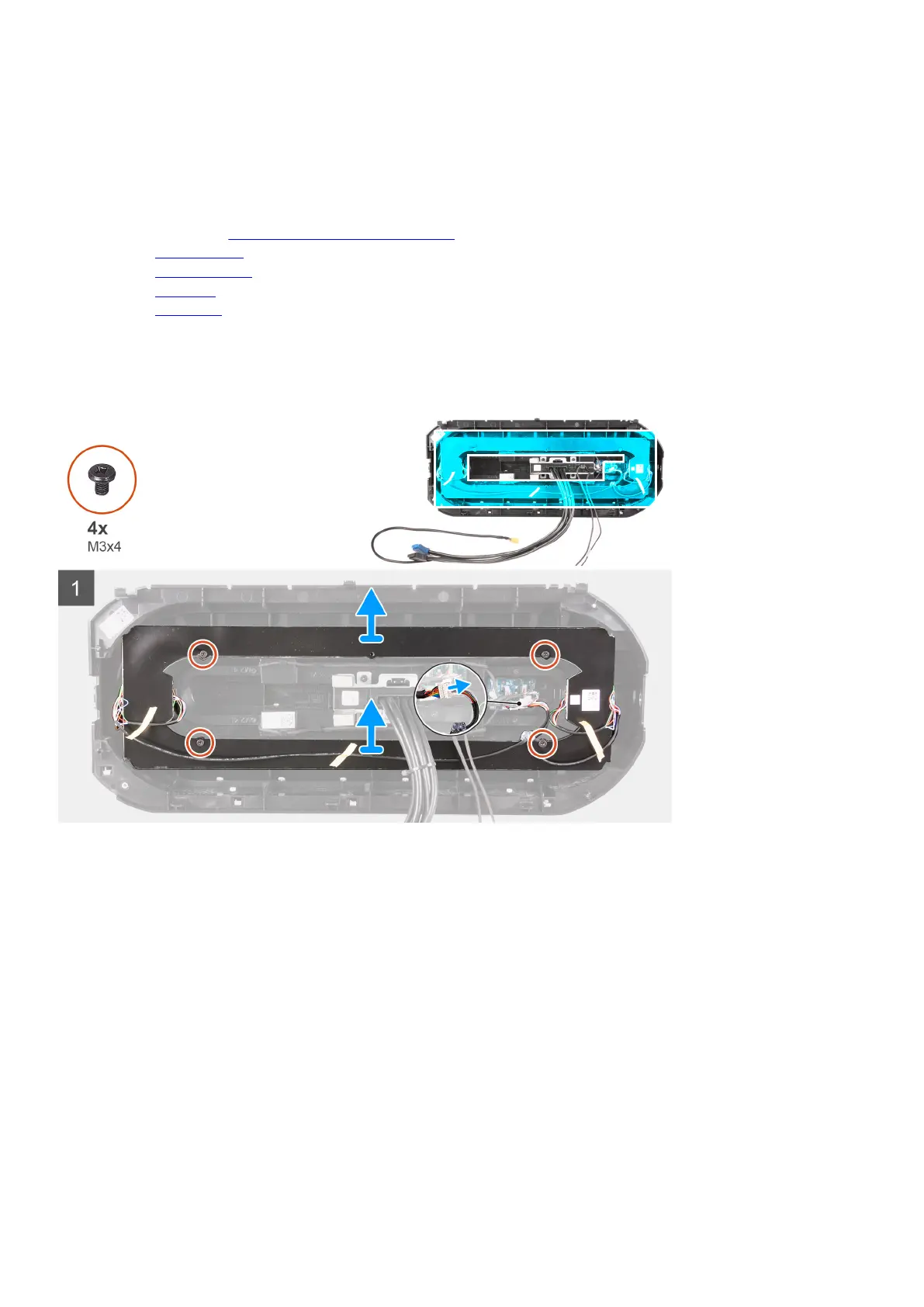

The following images indicate the location of the front AlienFX LED board and provides a visual representation of the removal
procedure.
Steps
1. Disconnect the AlienFX LED board cable from a Y-cable.
2. Remove the four screws (M3x4) that secure the AlienFX LED board to the front bezel.
3. Lift the AlienFX LED board off the front bezel.
Installing the front AlienFX LED board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front AlienFX LED board and provides a visual representation of the installation
procedure.
86
