Alienware Aurora R11 - Installing the Front I;O-Panel

Steps

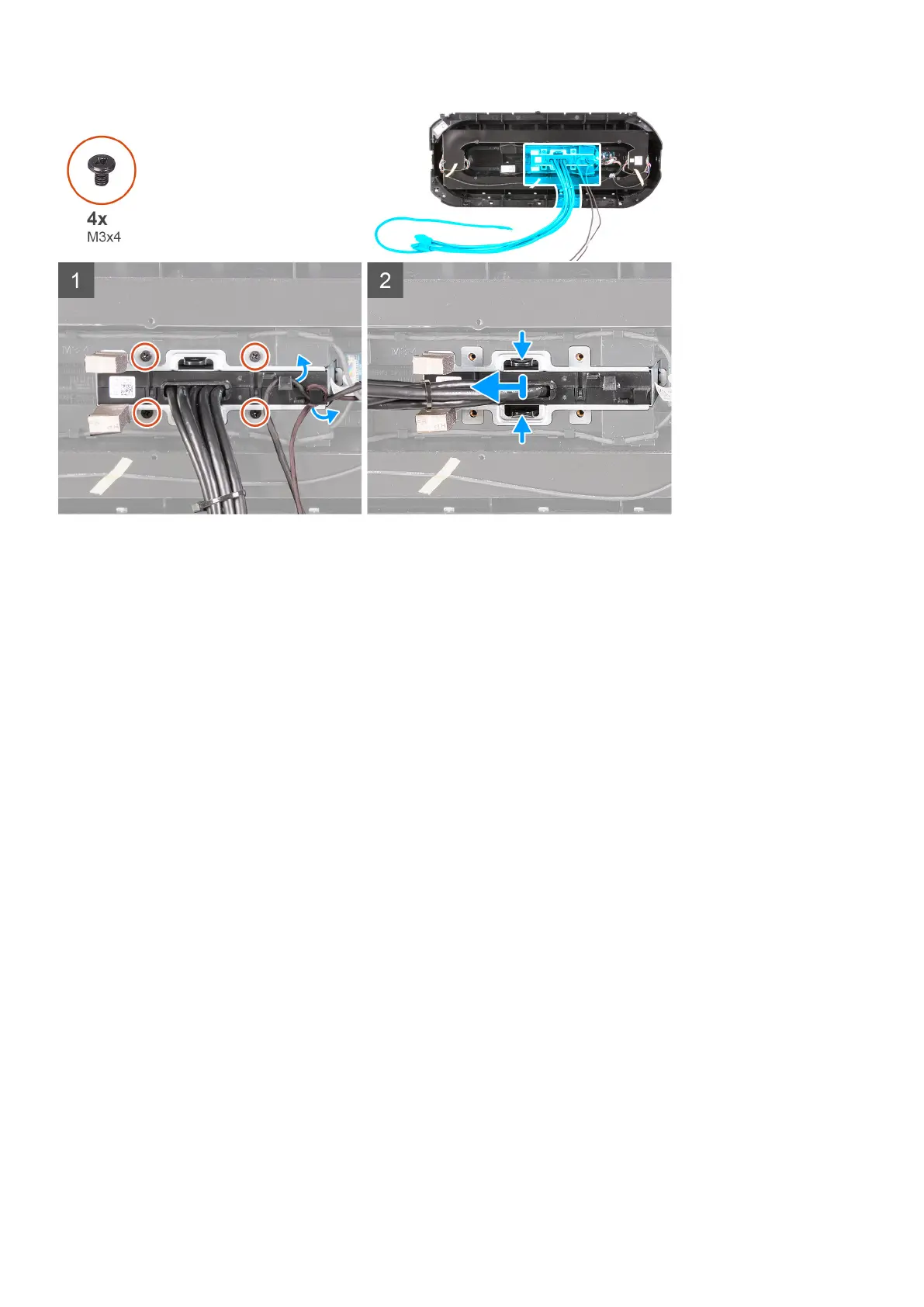

1. Remove the four screws (M3x4) that secures the front I/O-panel to the front bezel.
2. Remove the cable from the routing guides on the front I/O-panel.
3. Press the two clips and lift the front I/O-panel off the front bezel.
Installing the front I/O-panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front I/O-panel and provide a visual representation of the installation procedure.
