Alienware Aurora R11 - Installing the Power-Button Board

Steps

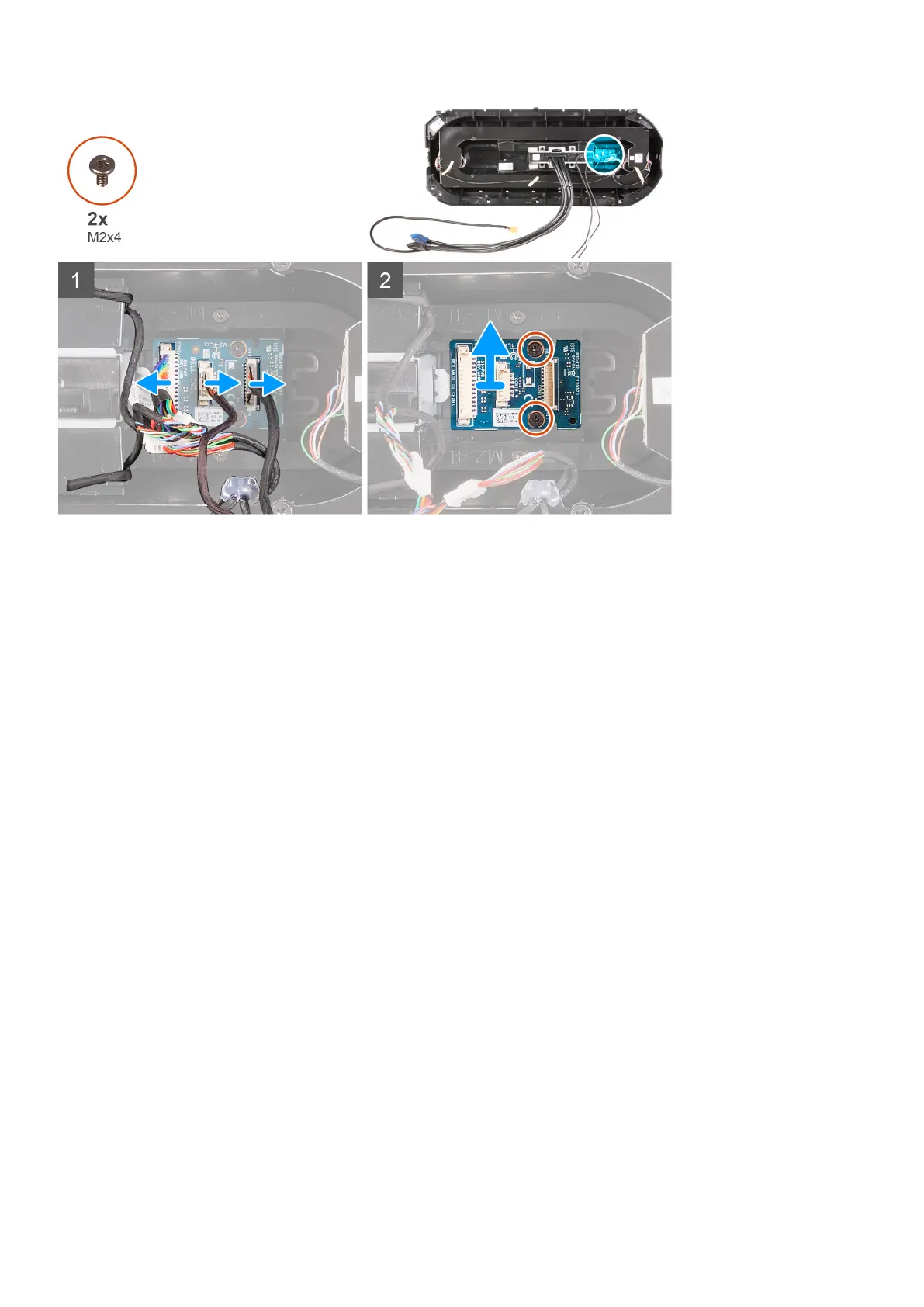

1. Remove the two screws (M2x4) that secure the power-button module to the front bezel.
2. Lift the power-button module off the front bezel.
3. Disconnect the cables from the power-button module.
Installing the power-button board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power-button board and provides a visual representation of the installation
procedure.
88
