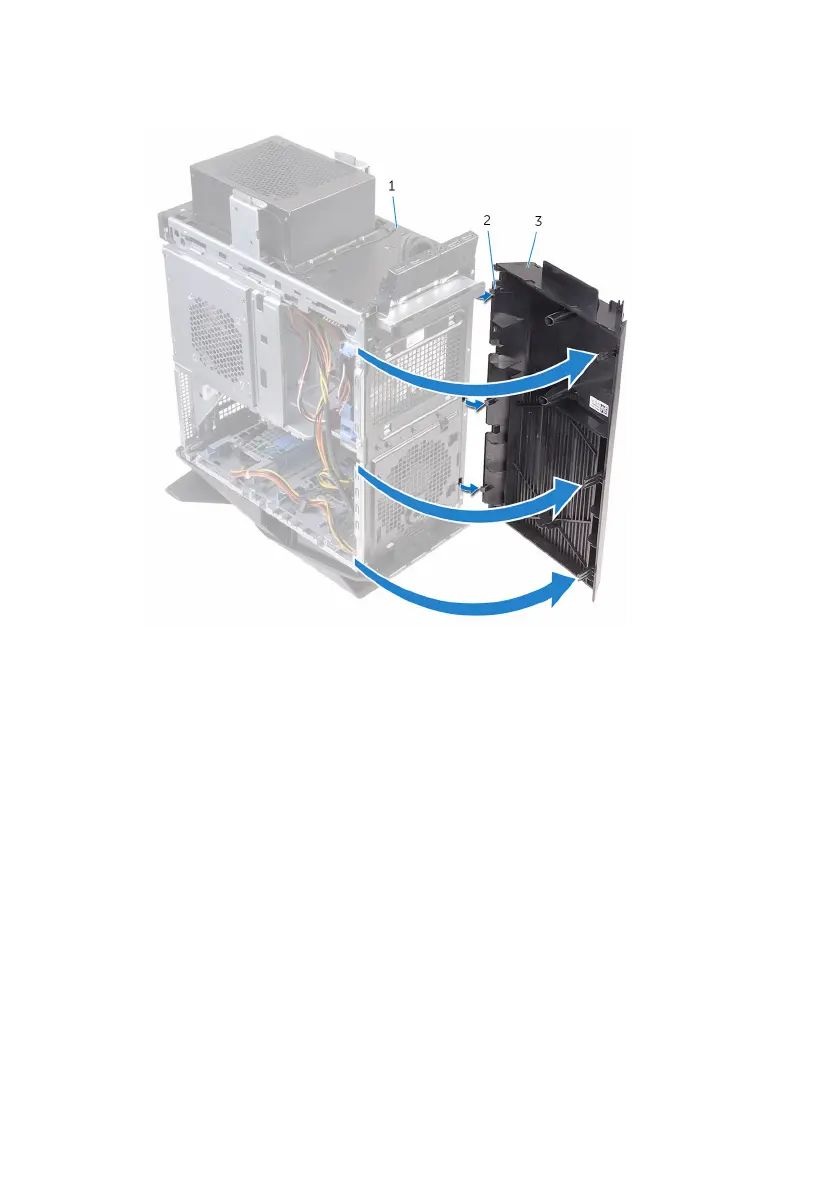

3 Rotate and pull the front bezel away from the front of the computer to

release the tabs on the front bezel from the slots on the front panel.

1 chassis 2 tabs

3 front bezel

103
