Alienware Aurora R5

To Next Page

To Previous Page

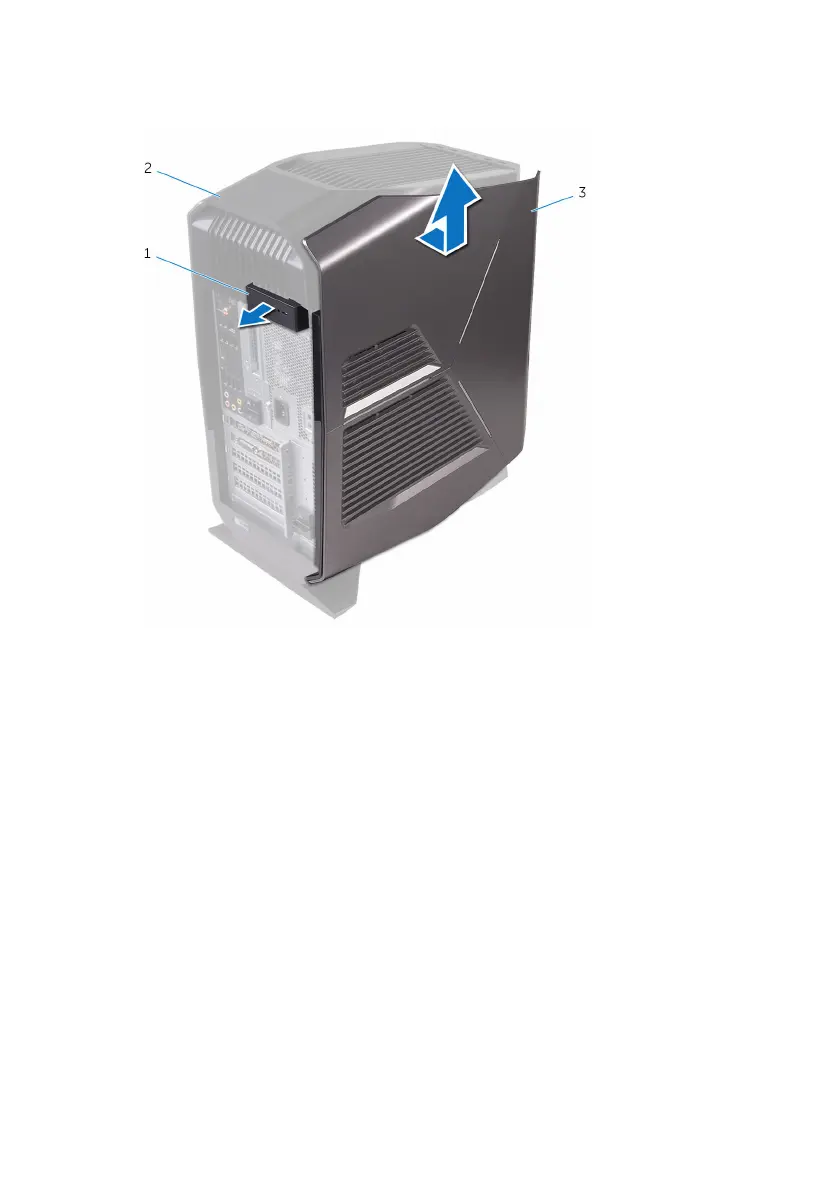

2 Release the left-side cover away from the chassis and then lift it from the

computer.

1 side-panel release latch 2 top cover

3 left-side cover
