3 Insert the memory module into the memory-module slot and press the
memory module down until it snaps into position and the securing clips
lock in place.

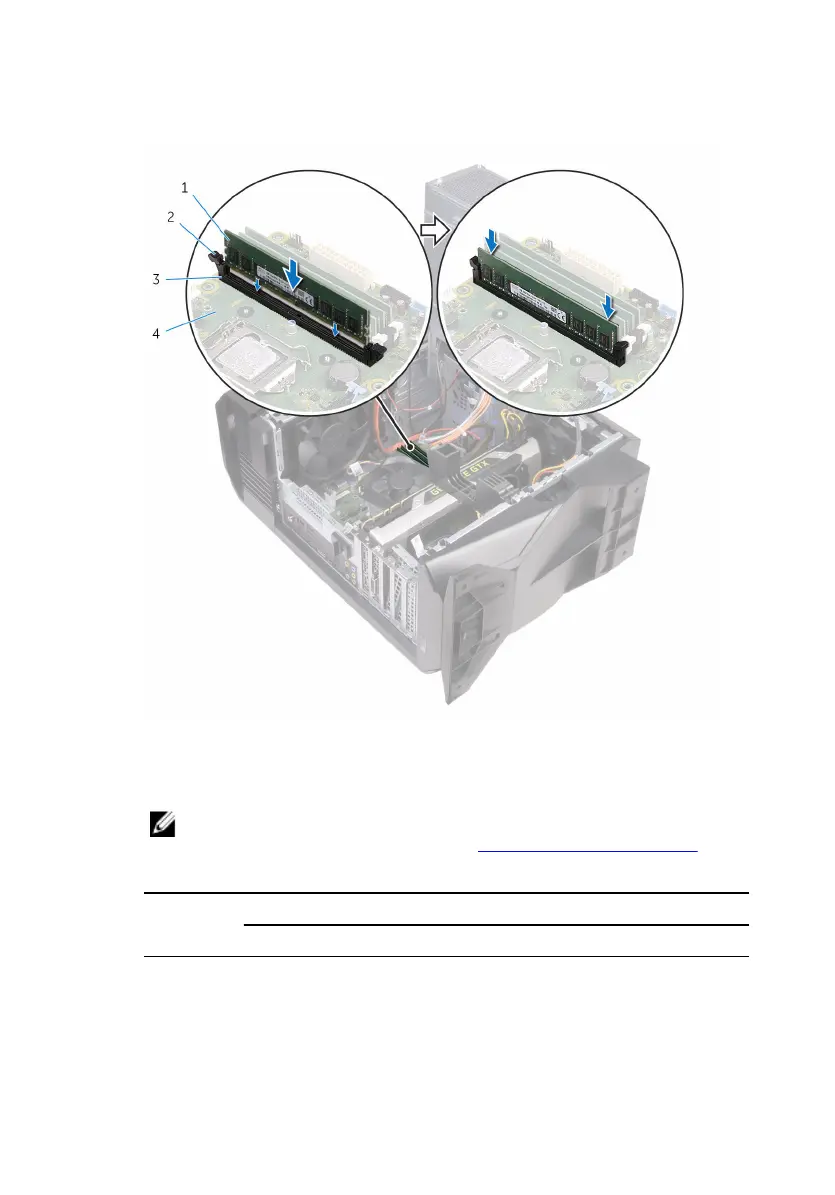

1 memory module 2 securing clips (2)
3 memory-module slot 4 system board
NOTE: Use slots XMM1 and XMM2 if you need to use two memory
modules. For more information, see System-board components.
The following table lists the available memory configuration matrix:
Configur
ation
Slot
XMM1 XMM2 XMM3 XMM4
8 GB 4 GB 4 GB
16 GB 8 GB 8 GB
24 GB 4 GB 4 GB 8 GB 8 GB
32 GB 8 GB 8 GB 8 GB 8 GB
64 GB 16 GB 16 GB 16 GB 16 GB
64
