4 Slide and remove the wireless card from the wireless-card slot.

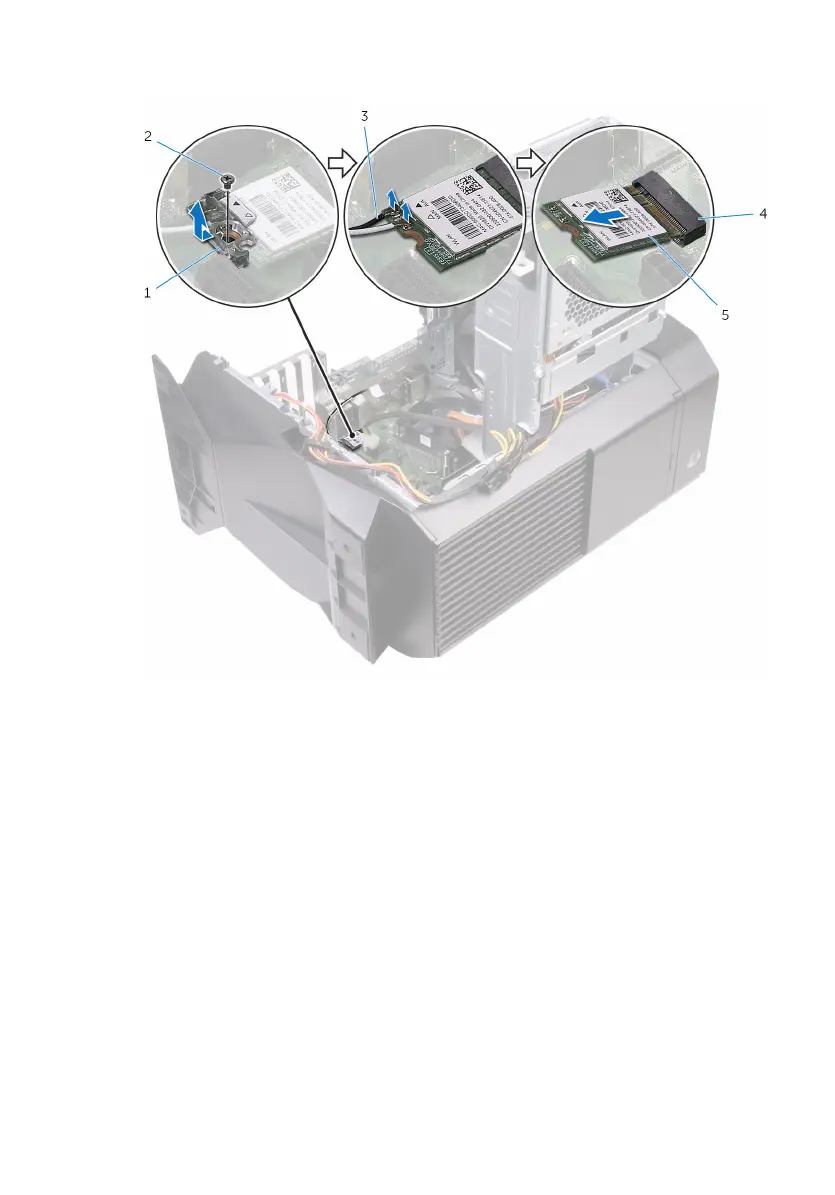

1 wireless-card bracket 2 screw

3 antenna cables 4 wireless-card slot

5 wireless card
