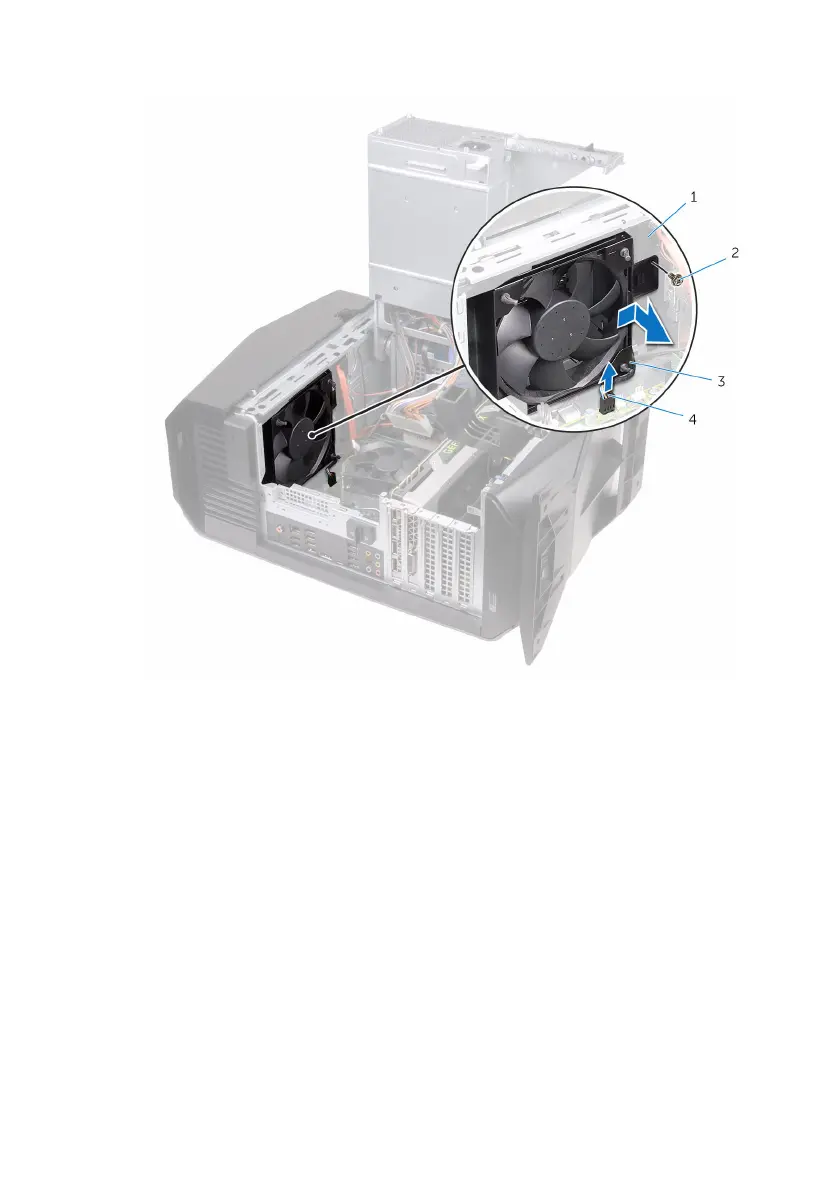

3 Remove the top-chassis fan from the chassis.
1 chassis 2 screw
3 top-chassis fan 4 top-chassis fan cable
4 Remove the top-chassis fan cable from the routing guide on the top-
chassis fan bracket.
5 Push the rubber grommets through the holes at each corner of the fan to
release top-chassis fan from the bracket.
