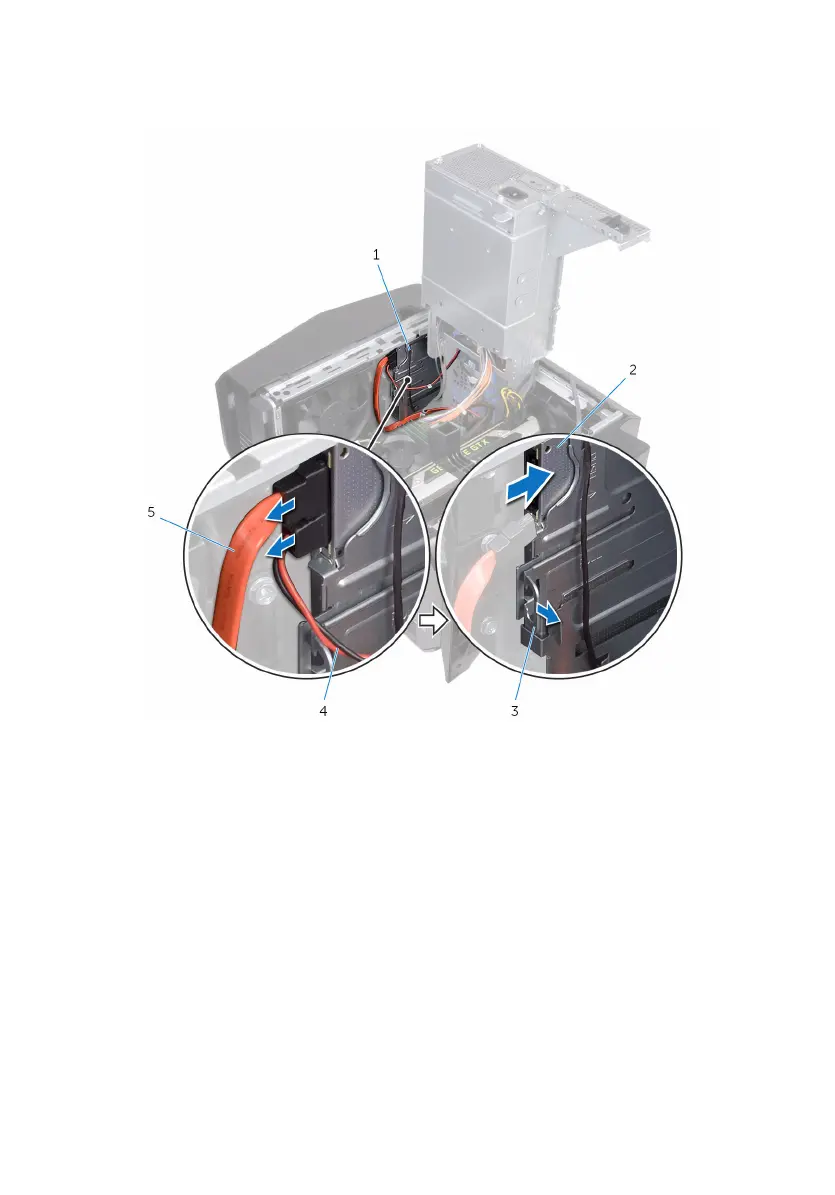

2 Pull the securing tab to release the optical-drive assembly from the
chassis.
1 optical-drive assembly 2 optical drive
3 securing tab 4 power cable
5 data cable
97
