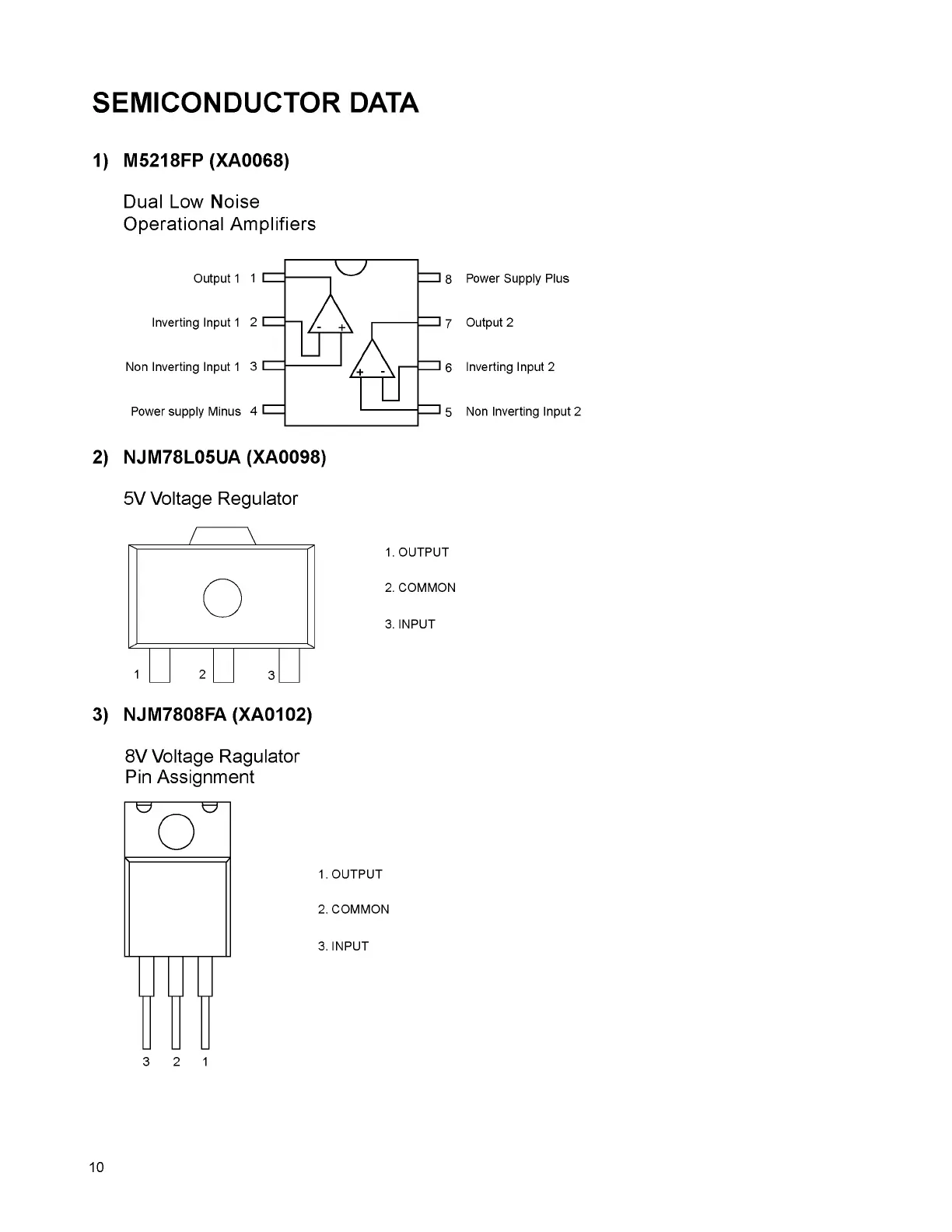

SEMICONDUCTOR DATA
1) M5218FP (XA0068)
Dual Low Noise
Operational Amplifiers
Output 1 1
Inverting Input 1 2
Non Inverting Input 1 3
Power supply Minus 4
2) NJM78L05UA (XA0098)
5V Voltage Regulator
1. OUTPUT
2. COMMON
3. INPUT
3) NJM7808FA (XA0102)
8V Voltage Ragulator
Pin Assignment
1. OUTPUT
2. COMMON
3. INPUT
3 2 1
8
7
6
5
Power Supply Plus
Output 2
Inverting Input 2
Non Inverting Input 2
