Alinco DR-620 - Parts List; Front Unit Components

To Next Page

To Previous Page

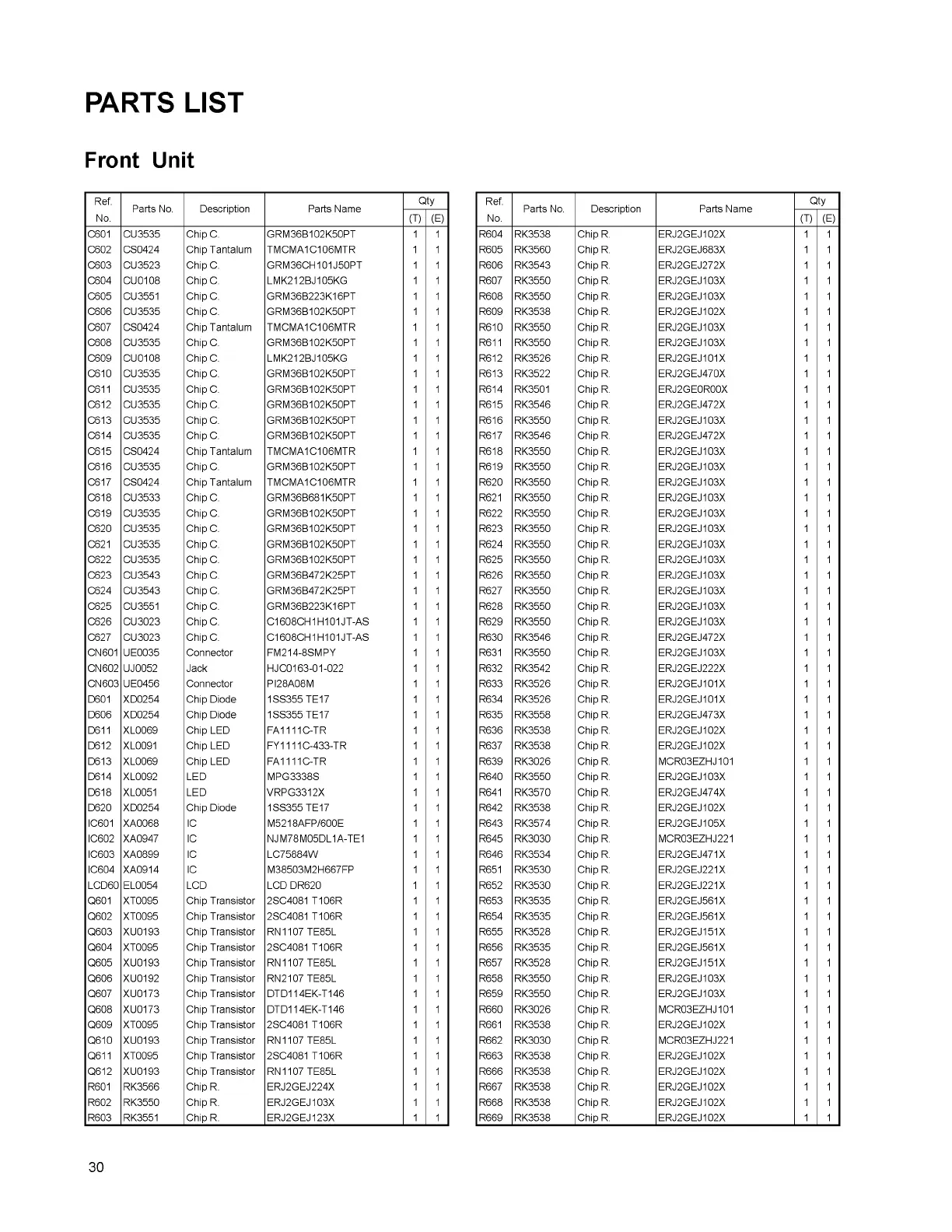

PARTS LIST

Front Unit

Ref.

Parts No. Description Parts Name

Qty

No.

(T)

(E)

C601 CU3535 Chip C. GRM36B102K50PT 1 1

C602 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C603 CU3523 Chip C. GRM36CH101J50PT 1 1

C604 CU0108 Chip C. LMK212BJ105KG 1 1

C605 CU3551 Chip C. GRM36B223K16PT 1 1

C606 CU3535 Chip C. GRM36B102K50PT 1 1

C607 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C608 CU3535 Chip C. GRM36B102K50PT 1 1

C609 CU0108 Chip C. LMK212BJ105KG 1 1

C610 CU3535 Chip C. GRM36B102K50PT 1 1

C611 CU3535 Chip C. GRM36B102K50PT 1 1

C612 CU3535 Chip C. GRM36B102K50PT 1 1

C613 CU3535 Chip C. GRM36B102K50PT 1 1

C614 CU3535 Chip C. GRM36B102K50PT 1 1

C615 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C616 CU3535 Chip C. GRM36B102K50PT 1 1

C617 CS0424 Chip Tantalum TMCMA1C106MTR 1 1

C618 CU3533 Chip C. GRM36B681K50PT 1 1

C619 CU3535 Chip C. GRM36B102K50PT 1 1

C620 CU3535 Chip C. GRM36B102K50PT 1 1

C621 CU3535 Chip C. GRM36B102K50PT 1 1

C622 CU3535 Chip C. GRM36B102K50PT 1 1

C623 CU3543 Chip C. GRM36B472K25PT 1 1

C624 CU3543 Chip C. GRM36B472K25PT 1 1

C625 CU3551 Chip C. GRM36B223K16PT 1 1

C626 CU3023 Chip C. C1608CH1H101JT-AS 1 1

C627 CU3023 Chip C. C1608CH1H101JT-AS 1 1

CN601 UE0035 Connector FM214-8SMPY 1

CN602 UJ0052 Jack HJC0163-01-022 1

CN603 UE0456 Connector PI28A08M 1 1

D601 XD0254 Chip Diode 1SS355 TE17 1 1

D606 XD0254 Chip Diode 1SS355 TE17 1 1

D611 XL0069 Chip LED FA1111C-TR 1 1

D612 XL0091 Chip LED FY1111C-433-TR 1 1

D613 XL0069 Chip LED FA1111C-TR 1 1

D614 XL0092 LED MPG3338S 1 1

D618 XL0051 LED VRPG3312X 1 1

D620 XD0254 Chip Diode 1SS355 TE17 1 1

IC601 XA0068 IC M5218AFP/600E 1 1

IC602 XA0947 IC NJM78M05DL1A-TE1 1 1

IC603 XA0899 IC LC75884W 1 1

IC604 XA0914 IC M38503M2H667FP 1 1

LCD60 EL0054 LCD LCD DR620 1 1

Q601 XT0095 Chip Transistor 2SC4081 T106R 1 1

Q602 XT0095 Chip Transistor 2SC4081 T106R 1 1

Q603 XU0193 Chip Transistor RN1107 TE85L 1 1

Q604 XT0095 Chip Transistor 2SC4081 T106R 1 1

Q605 XU0193 Chip Transistor RN1107 TE85L 1 1

Q606 XU0192 Chip Transistor RN2107 TE85L 1 1

Q607 XU0173 Chip Transistor DTD114EK-T146 1 1

Q608 XU0173 Chip Transistor DTD114EK-T146 1 1

Q609 XT0095 Chip Transistor 2SC4081 T106R 1 1

Q610 XU0193 Chip Transistor RN1107 TE85L 1 1

Q611 XT0095 Chip Transistor 2SC4081 T106R 1 1

Q612 XU0193 Chip Transistor RN1107 TE85L 1 1

R601 RK3566 Chip R. ERJ2GEJ224X 1 1

R602 RK3550 Chip R. ERJ2GEJ103X 1 1

R603 RK3551 Chip R. ERJ2GEJ123X 1 1

Ref.

No.

Parts No. Description Parts Name

Qty

(T)

(E)

R604 RK3538 Chip R. ERJ2GEJ102X 1 1

R605 RK3560 Chip R. ERJ2GEJ683X 1 1

R606 RK3543 Chip R. ERJ2GEJ272X 1 1

R607 RK3550 Chip R. ERJ2GEJ103X 1 1

R608 RK3550 Chip R. ERJ2GEJ103X 1 1

R609 RK3538 Chip R. ERJ2GEJ102X 1 1

R610 RK3550 Chip R. ERJ2GEJ103X 1 1

R611 RK3550 Chip R. ERJ2GEJ103X 1 1

R612 RK3526 Chip R. ERJ2GEJ101X 1 1

R613 RK3522 Chip R. ERJ2GEJ470X 1 1

R614 RK3501 Chip R. ERJ2GE0R00X 1 1

R615 RK3546 Chip R. ERJ2GEJ472X 1 1

R616 RK3550 Chip R. ERJ2GEJ103X 1 1

R617 RK3546 Chip R. ERJ2GEJ472X 1 1

R618 RK3550 Chip R. ERJ2GEJ103X 1 1

R619 RK3550 Chip R. ERJ2GEJ103X 1 1

R620 RK3550 Chip R. ERJ2GEJ103X 1 1

R621 RK3550 Chip R. ERJ2GEJ103X 1 1

R622 RK3550 Chip R. ERJ2GEJ103X 1 1

R623 RK3550 Chip R. ERJ2GEJ103X 1 1

R624 RK3550 Chip R. ERJ2GEJ103X 1 1

R625 RK3550 Chip R. ERJ2GEJ103X 1 1

R626 RK3550 Chip R. ERJ2GEJ103X 1 1

R627 RK3550 Chip R. ERJ2GEJ103X 1 1

R628 RK3550 Chip R. ERJ2GEJ103X 1 1

R629 RK3550 Chip R. ERJ2GEJ103X 1 1

R630 RK3546 Chip R. ERJ2GEJ472X 1 1

R631 RK3550 Chip R. ERJ2GEJ103X 1

R632 RK3542 Chip R. ERJ2GEJ222X 1

R633 RK3526 Chip R. ERJ2GEJ101X 1 1

R634 RK3526 Chip R. ERJ2GEJ101X 1 1

R635 RK3558 Chip R. ERJ2GEJ473X 1 1

R636 RK3538 Chip R. ERJ2GEJ102X 1 1

R637 RK3538 Chip R. ERJ2GEJ102X 1 1

R639 RK3026 Chip R. MCR03EZHJ101 1 1

R640 RK3550 Chip R. ERJ2GEJ103X 1 1

R641 RK3570 Chip R. ERJ2GEJ474X 1 1

R642 RK3538 Chip R. ERJ2GEJ102X 1 1

R643 RK3574 Chip R. ERJ2GEJ105X 1 1

R645 RK3030 Chip R. MCR03EZHJ221 1 1

R646 RK3534 Chip R. ERJ2GEJ471X 1 1

R651 RK3530 Chip R. ERJ2GEJ221X 1 1

R652 RK3530 Chip R. ERJ2GEJ221X 1 1

R653 RK3535 Chip R. ERJ2GEJ561X 1 1

R654 RK3535 Chip R. ERJ2GEJ561X 1 1

R655 RK3528 Chip R. ERJ2GEJ151X 1 1

R656 RK3535 Chip R. ERJ2GEJ561X 1 1

R657 RK3528 Chip R. ERJ2GEJ151X 1 1

R658 RK3550 Chip R. ERJ2GEJ103X 1 1

R659 RK3550 Chip R. ERJ2GEJ103X 1 1

R660 RK3026 Chip R. MCR03EZHJ101 1 1

R661 RK3538 Chip R. ERJ2GEJ102X 1 1

R662 RK3030 Chip R. MCR03EZHJ221 1 1

R663 RK3538 Chip R. ERJ2GEJ102X 1 1

R666 RK3538 Chip R. ERJ2GEJ102X 1 1

R667 RK3538 Chip R. ERJ2GEJ102X 1 1

R668 RK3538 Chip R. ERJ2GEJ102X 1 1

R669 RK3538 Chip R. ERJ2GEJ102X 1 1
