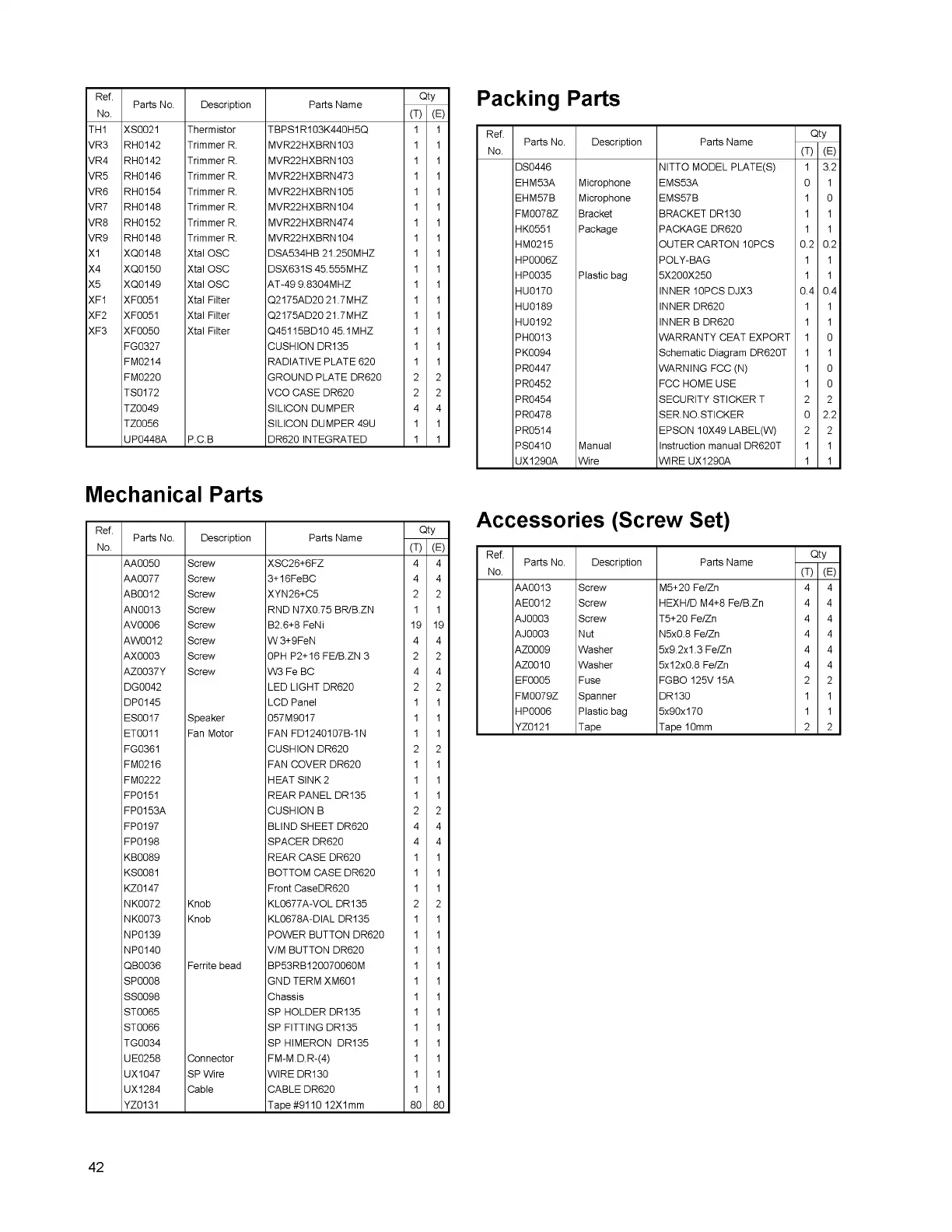

Ref.
No.
Parts No. Description Parts Name
Qty
(T) (E)
TH1 XS0021 Thermistor TBPS1R103K440H5Q 1 1
VR3 RH0142 Trimmer R. MVR22HXBRN103 1 1
VR4 RH0142 Trimmer R. MVR22HXBRN103 1 1
VR5 RH0146 Trimmer R. MVR22HXBRN473 1 1
VR6 RH0154 Trimmer R. MVR22HXBRN105 1 1
VR7 RH0148 Trimmer R. MVR22HXBRN104 1 1
VR8 RH0152 Trimmer R. MVR22HXBRN474 1 1
VR9 RH0148 Trimmer R. MVR22HXBRN104 1 1
X1 XQ0148 Xtal OSC DSA534HB 21.250MHZ 1 1
X4 XQ0150 Xtal OSC DSX631S 45.555MHZ 1
X5 XQ0149 Xtal OSC AT-49 9.8304MHZ 1 1
XF1 XF0051 Xtal Filter Q2175AD20 21.7MHZ 1 1
XF2 XF0051 Xtal Filter Q2175AD20 21.7MHZ 1 1
XF3 XF0050 Xtal Filter Q45115BD10 45.1MHZ 1 1
FG0327 CUSHION DR135 1 1
FM0214 RADIATIVE PLATE 620 1 1
FM0220 GROUND PLATE DR620 2 2
TS0172 VCO CASE DR620 2 2
TZ0049 SILICON DUMPER 4 4
TZ0056 SILICON DUMPER 49U 1 1
UP0448A P.C.B DR620 INTEGRATED 1 1
Mechanical Parts
Ref.
No.
Parts No. Description Parts Name
Qty
(T)
(E)
AA0050 Screw XSC26+6FZ 4 4
AA0077 Screw 3+16FeBC 4 4
AB0012 Screw XYN26+C5
2 2
AN0013 Screw RND N7X0.75 BR/B.ZN 1 1
AV0006 Screw B2.6+8 FeNi 19 19
AW0012 Screw W3+9FeN 4 4
AX0003 Screw 0PH P2+16 FE/B.ZN 3 2 2
AZ0037Y Screw W3 Fe BC 4 4
DG0042 LED LIGHT DR620 2 2
DP0145 LCD Panel 1 1
ES0017 Speaker 057M9017 1 1
ET0011 Fan Motor FAN FD1240107B-1N 1 1
FG0361 CUSHION DR620 2 2
FM0216 FAN COVER DR620 1 1
FM0222 HEAT SINK 2 1 1
FP0151 REAR PANEL DR135 1 1
FP0153A CUSHION B 2 2
FP0197 BLIND SHEET DR620 4 4
FP0198 SPACER DR620 4 4
KB0089 REAR CASE DR620 1 1
KS0081 BOTTOM CASE DR620 1 1
KZ0147 Front CaseDR620 1 1
NK0072 Knob KL0677A-VOL DR135
NK0073 Knob KL0678A-DIAL DR135
1 1
NP0139 POWER BUTTON DR620 1 1
NP0140 V/M BUTTON DR620 1 1
QB0036 Ferrite bead BP53RB120070060M 1 1
SP0008 GND TERM XM601 1 1
SS0098 Chassis 1 1
ST0065 SP HOLDER DR135 1 1
ST0066 SP FITTING DR135 1 1
TG0034 SP HIMERON DR135 1 1
UE0258 Connector FM-M.D.R-(4) 1 1
UX1047 SP Wire WIRE DR130 1 1
UX1284 Cable CABLE DR620 1 1
YZ0131 Tape #9110 12X1mm 80 80
P a c k in g P a r t s
Ref.
No.
Parts No. Description Parts Name
Qty
(T)
(E)
DS0446 NITTO MODEL PLATE(S) 1 3.2
EHM53A Microphone EMS53A 0 1
EHM57B Microphone EMS57B 1 0
FM0078Z Bracket BRACKET DR130 1 1
HK0551 Package PACKAGE DR620 1 1
HM0215 OUTER CARTON 10PCS 0.2 0.2
HP0006Z POLY-BAG 1 1
HP0035 Plastic bag 5X200X250 1 1
HU0170 INNER 10PCS DJX3 0.4 0.4
HU0189 INNER DR620 1 1
HU0192 INNER B DR620 1 1
PH0013 WARRANTY CEAT EXPORT 1 0
PK0094 Schematic Diagram DR620T 1 1
PR0447 WARNING FCC (N) 1 0
PR0452 FCC HOME USE 1 0
PR0454 SECURITY STICKER T 2 2
PR0478 SER.NO.STICKER 0 2.2
PR0514 EPSON 10X49 LABEL(W) 2 2
PS0410 Manual Instruction manual DR620T 1 1
UX1290A Wire WIRE UX1290A 1 1
Accessories (Screw Set)
Ref.
No.
Parts No. Description Parts Name
Qty
(T)
(E)
AA0013 Screw M5+20 Fe/Zn 4 4
AE0012 Screw HEXH/D M4+8 Fe/B.Zn 4 4
AJ0003 Screw T5+20 Fe/Zn 4 4
AJ0003 Nut N5x0.8 Fe/Zn 4 4
AZ0009 Washer 5x9.2x1.3 Fe/Zn 4 4
AZ0010 Washer 5x12x0.8 Fe/Zn 4 4
EF0005 Fuse FGBO 125V 15A 2 2
FM0079Z Spanner DR130 1 1
HP0006 Plastic bag 5x90x170 1 1
YZ0121 Tape Tape 10mm 2 2
42
