NO. KEY FUNCTION
1
PWR(Power) Power on/Off
2
VOL
Knob
Adjust audio level
3
SQL Knob Adjust Squelch level
4
FUNC Various functions
5
P1
Switches between VFO mode and Memory mode
6
P2 Changes frequency by 1MHz order
7
P3 Sets CTCSS and DCS values
8
P4 Call channel
9
Data Terminal
/Mic.connector
Data reading/writing, cloning and Microphone
connection port
10
TX/RX indicator RX is Green / TX is Red
NO. KEY FUNCTION
1
P1 MW(Setting memory channel data)
2
P2 Deleting memory channel
3
P3
Keypad lockout
4
P4 High/Middle/Low power
NO. KEY FUNCTION
1
FUNC Goes to FUNCTION MENU
2
P1 SCAN
3
P2
Frequency Offset
4
P3
Power voltage monitor
5
P4 --
Getting Acquainted

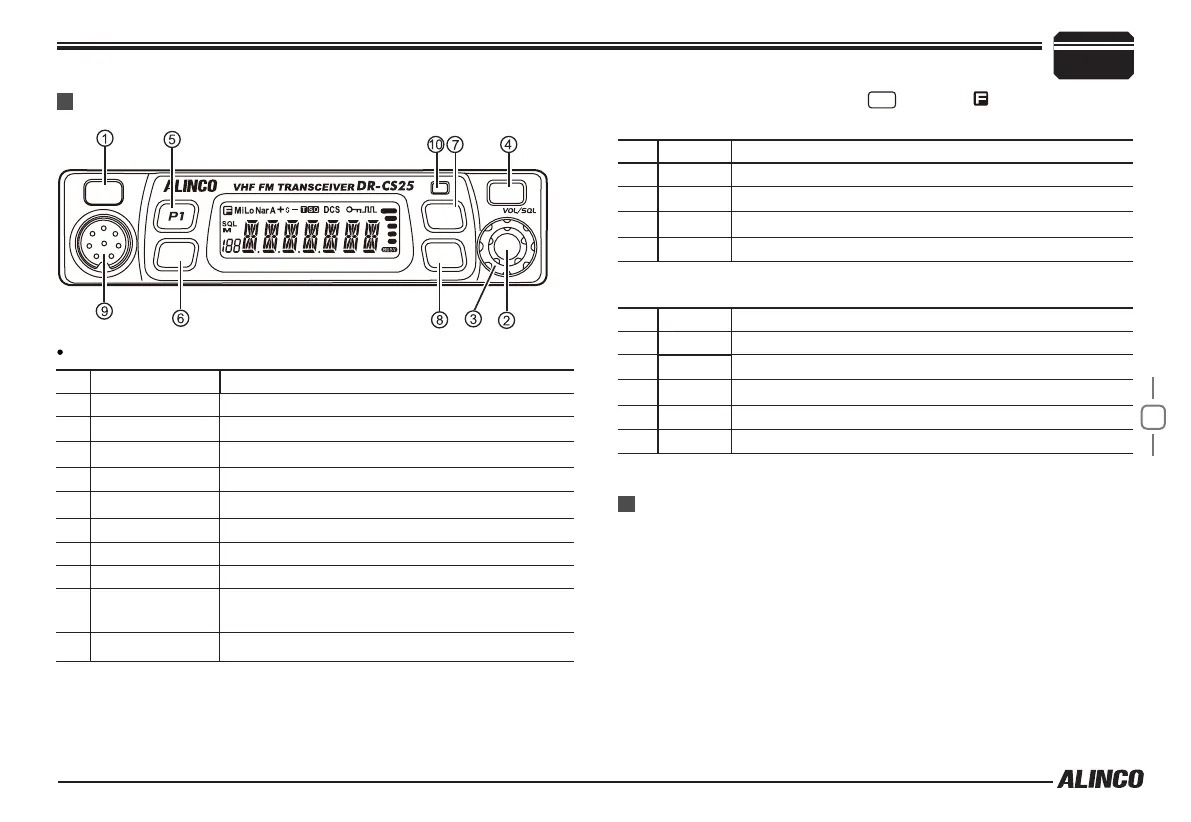

Front panel
Functions of P1-P4 keys are programmable as you prefer
by using the utility software
Functions that require pressing
FUNC
key until icon appears then
press the following key.
Functions that require holding for over 2 seconds the following key.
Basic Functions
P3
P2
FUNCPWR
P4
FACT reset will return the key assignments to default as listed here.
See P.22 for details.
