ZYNQ FPGA Development Platform AC7015 User Manual
Amazon Store: https://www.amazon.com/alinx
Sales Email: rachel.zhou@aithtech.com

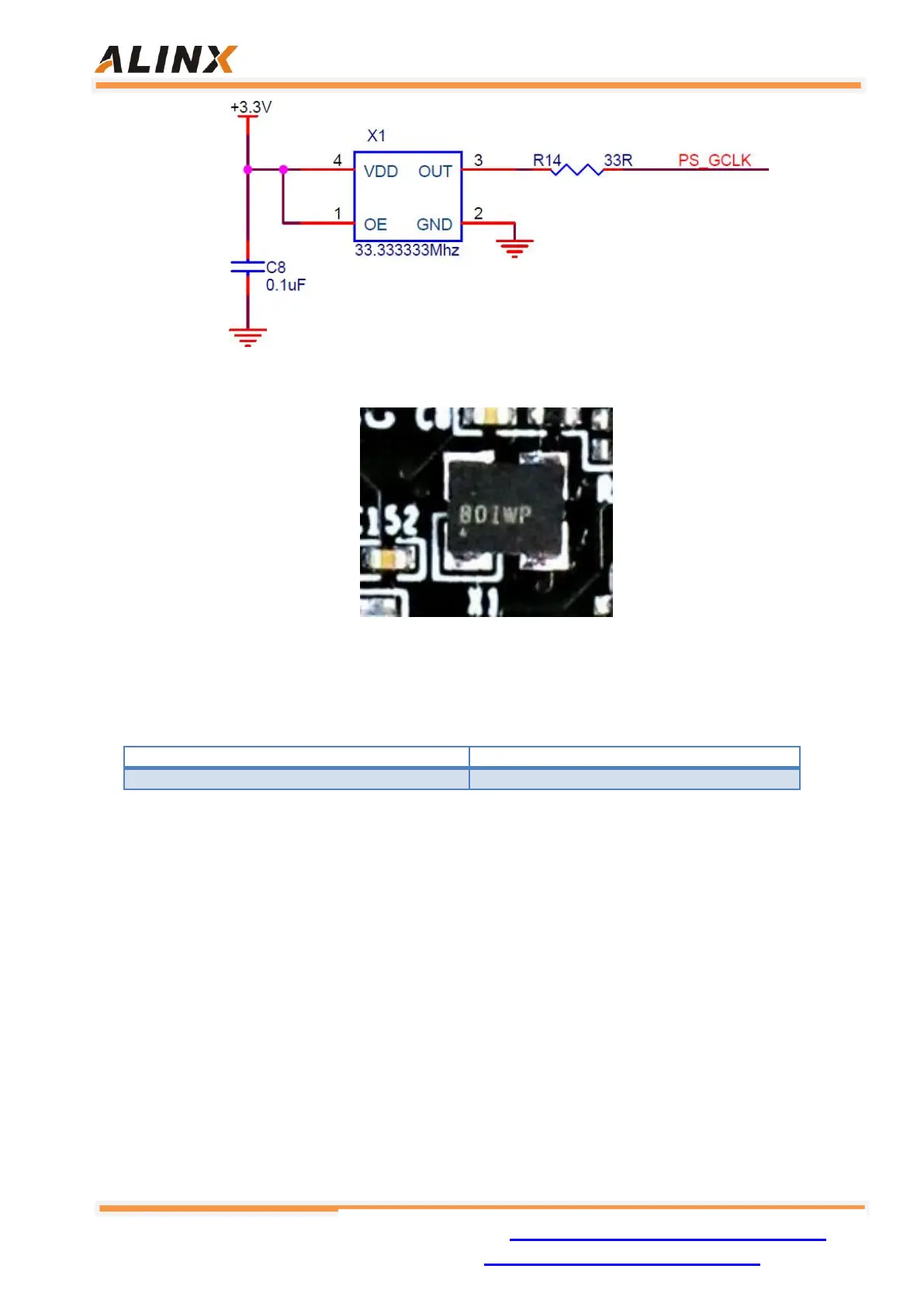

Figure 6-1: Active crystal oscillator to the PS section
]
Figure 6-2: 33.333Mhz active Crystal Oscillator on the Core Board
PS Clock pin assignment:
Table 6-1: PS Clock pin assignment
PL system clock source
The AC7015 core board provides a single-ended 125MHz PL system clock
source with 3.3V power supply. The crystal output is connected to the global clock
(MRCC) of the FPGA BANK13, which can be used to drive user logic within the
FPGA. The schematic diagram of the clock source is shown in Figure 6-3:
