Part 4: QSPI Flash
The AXU2CGA/B board has a 256MBit Quad-SPI FLASH chip, the model
is MT25QU256ABA1EW9-0SIT. QSPI FLASH is connected to the GPIO port of
BANK500 in the PS part of the ZYNQ chip. Figure 4-1 shows the part of QSPI
Flash in the schematic.

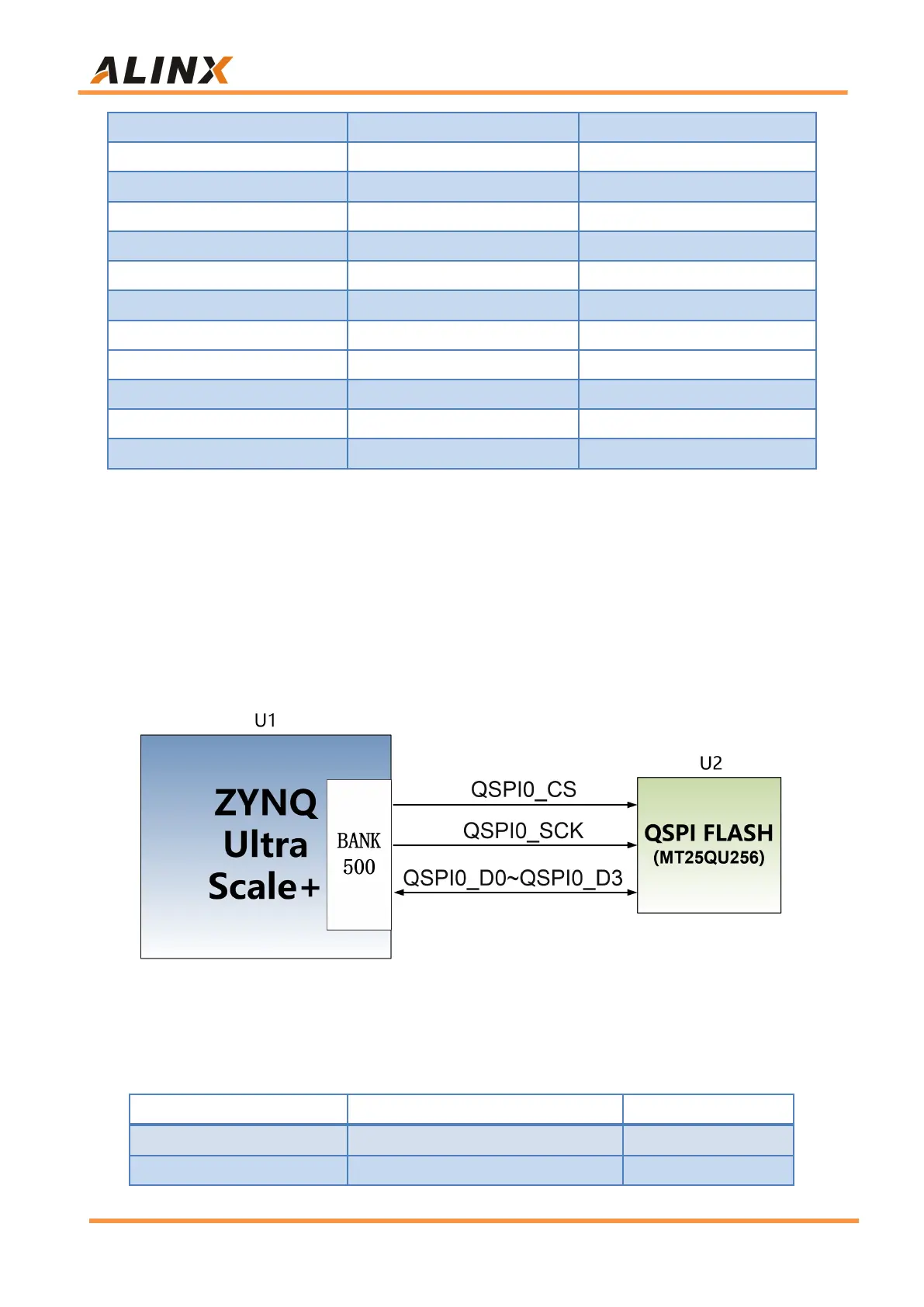

Figure 4-1: QSPI Flash
Configure Chip Pin Assignment:
Signal Name
Pin Name
Pin Number
MIO0_QSPI0_SCLK
PS_MIO0_500
AG15
MIO1_QSPI0_IO1
PS_MIO1_500
AG16
