Part 12: PCIE Interface
There is a PCIE x1 slot on the AXU2CGA/B board for connecting PCIE
peripherals, and the PCIE communication speed is up to 5Gbps. PCIE signal is
directly connected to LANE0 of BANK505 PS MGT transceiver. The schematic

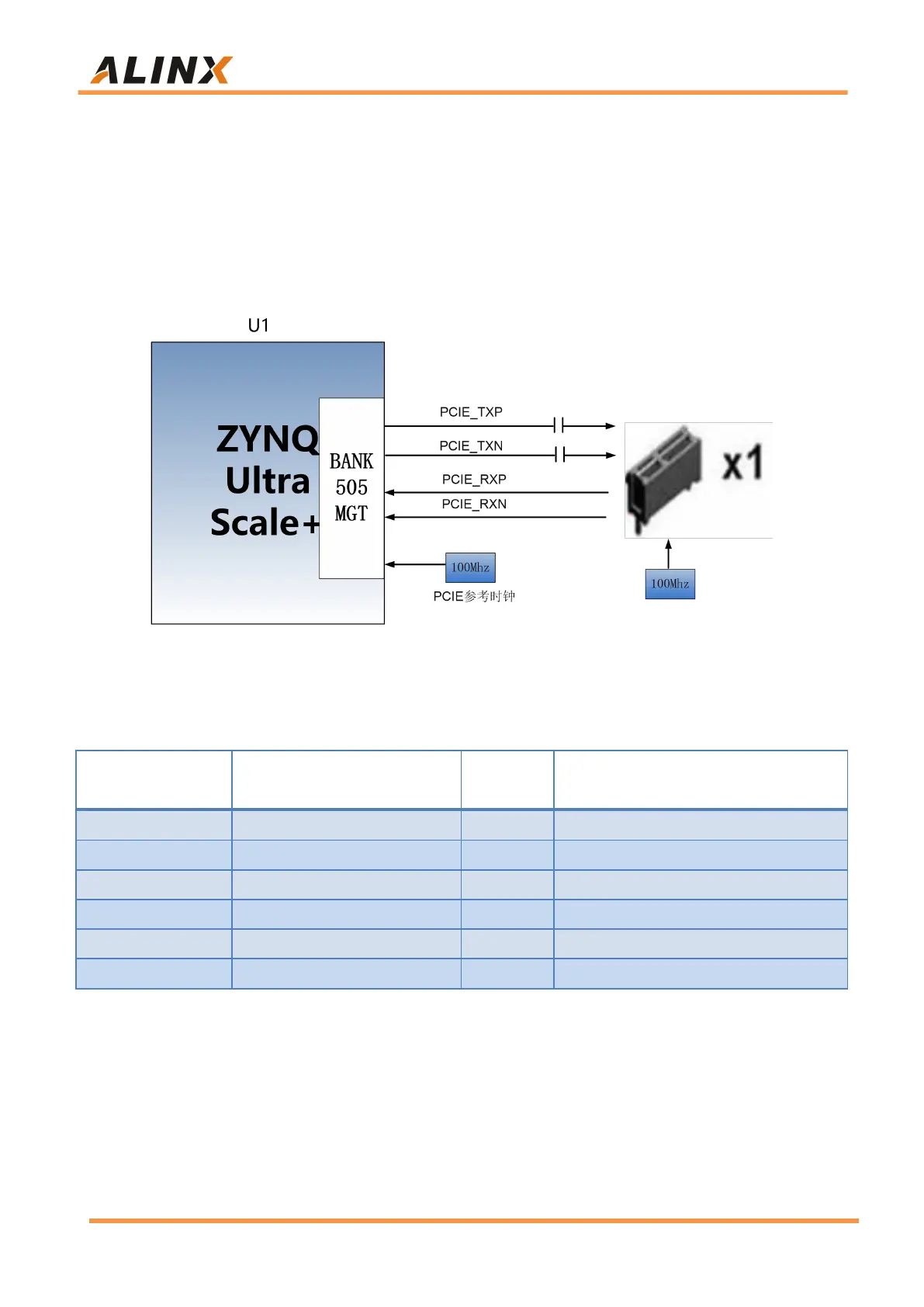

diagram of PCIE x 1 design is shown in Figure 12-1:
Figure 12-1: PCIE Schematic
PCIE Interface ZYNQ Pin Assignment
PCIE Data Transmission Positive
PCIE Data Transmission Negative
PCIE Data Receive Positive
PCIE Data Receive Negative
PCIE Data Reference Clock Positive
PCIE Data Reference Clock Negative
