Part 20: Power Input
The power input of AXU2CGA/B is an adapter with DC12V and current 2A.
The power interface is shown in the figure below

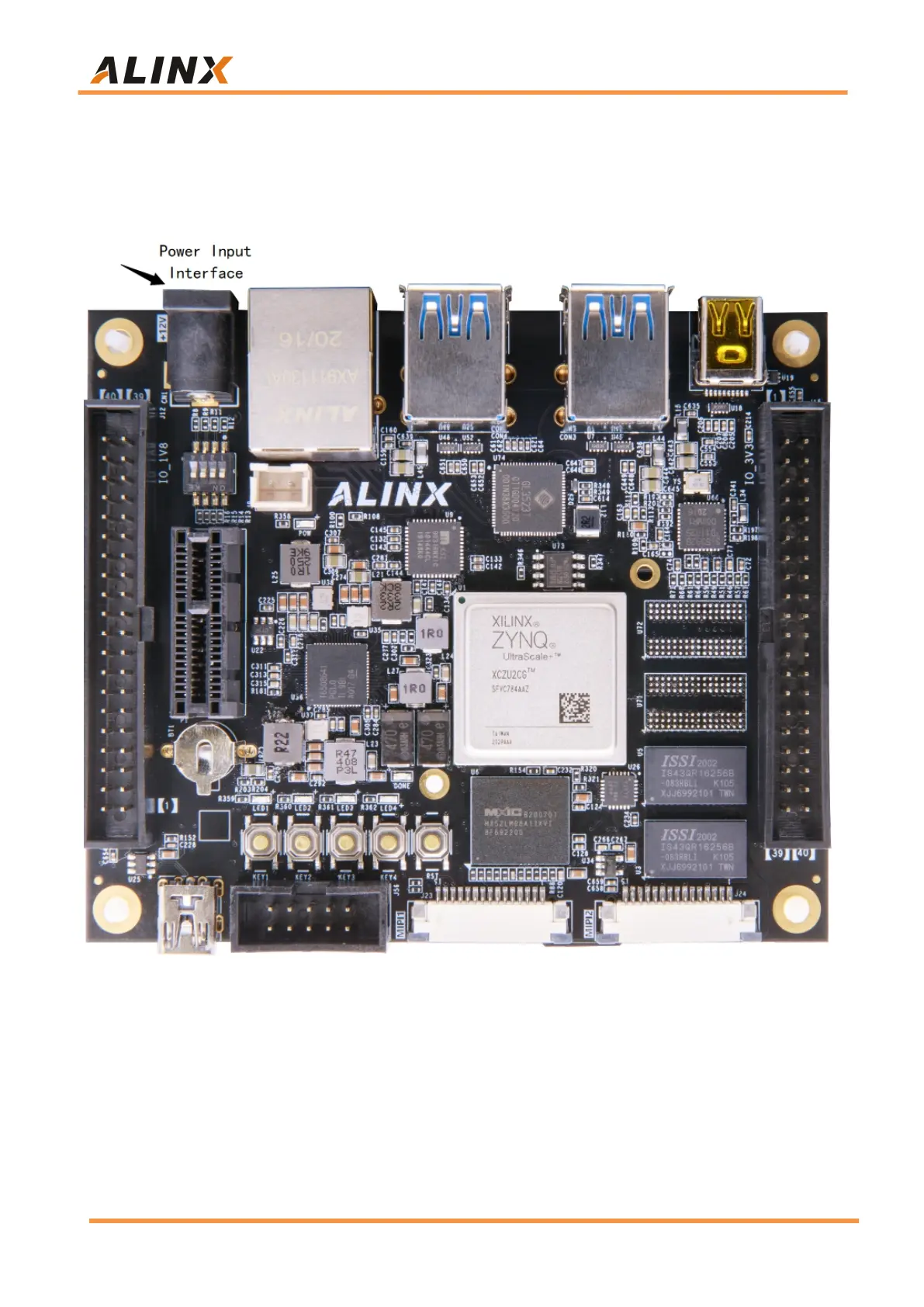

Figure 20-1: Power Input Interface
