Wire the Module
Introduction
Read this chapter for information about wiring and safety categories.
Connection Details
See the tables that show input device connection methods and their safety
categories.
Topic Page
Introduction 53
Connection Details 53
Examples of Wiring 55
Connected Device Test Pulse
from Test
Output

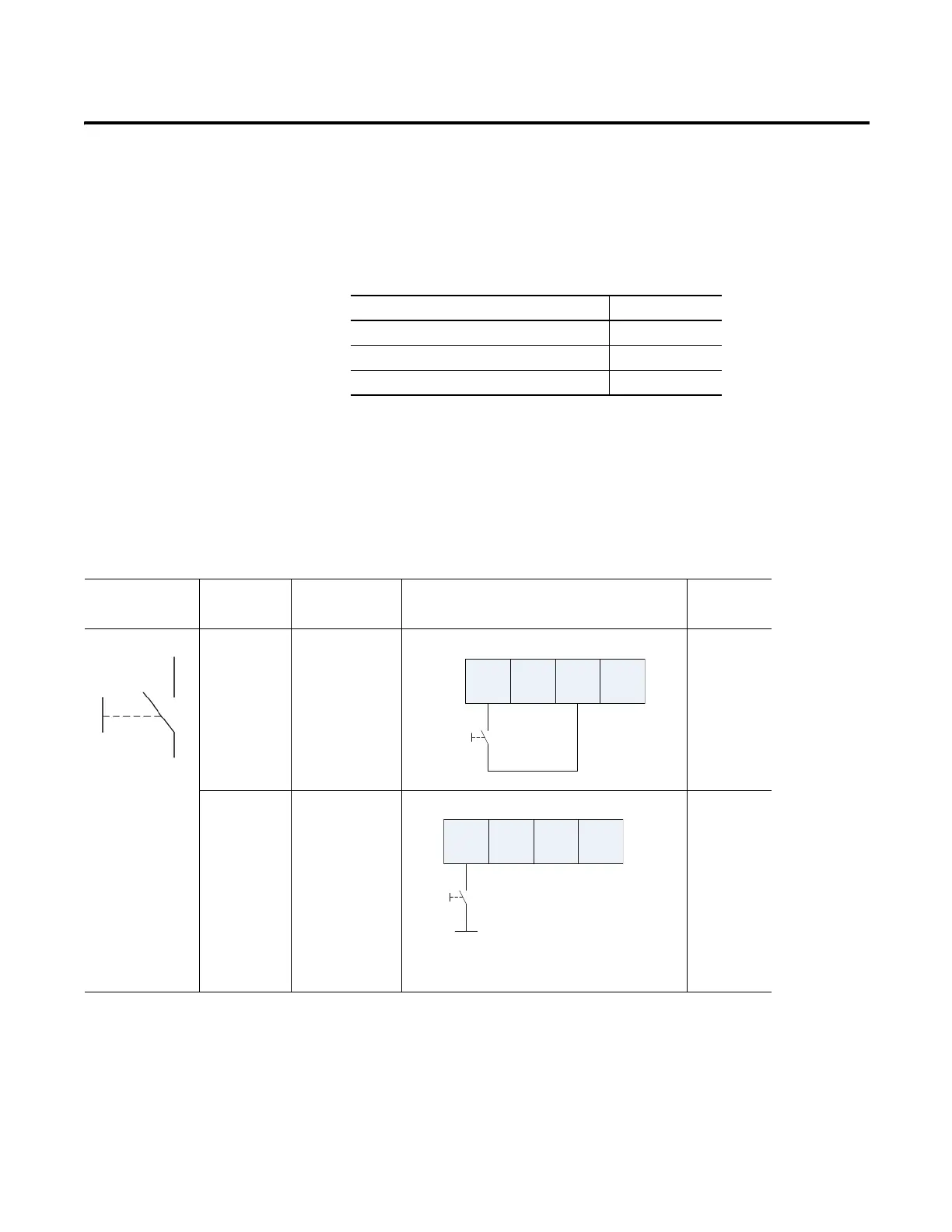

Connection Schematic Diagram Safety
Category
Push Button Yes Connect the push
button between I0
and T0. T0 must be
configured as test
pulse.
2
No Connect the push
button between 24V
DC and I0.
1
I0 I1 T0 T1
