Allen-Bradley 1734-IB8S Installation & User Manual

72 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 6 Configure the Module in a GuardLogix Controller
13. Click OK.
You return to the Module Properties dialog box.
14. Click OK to apply your changes.

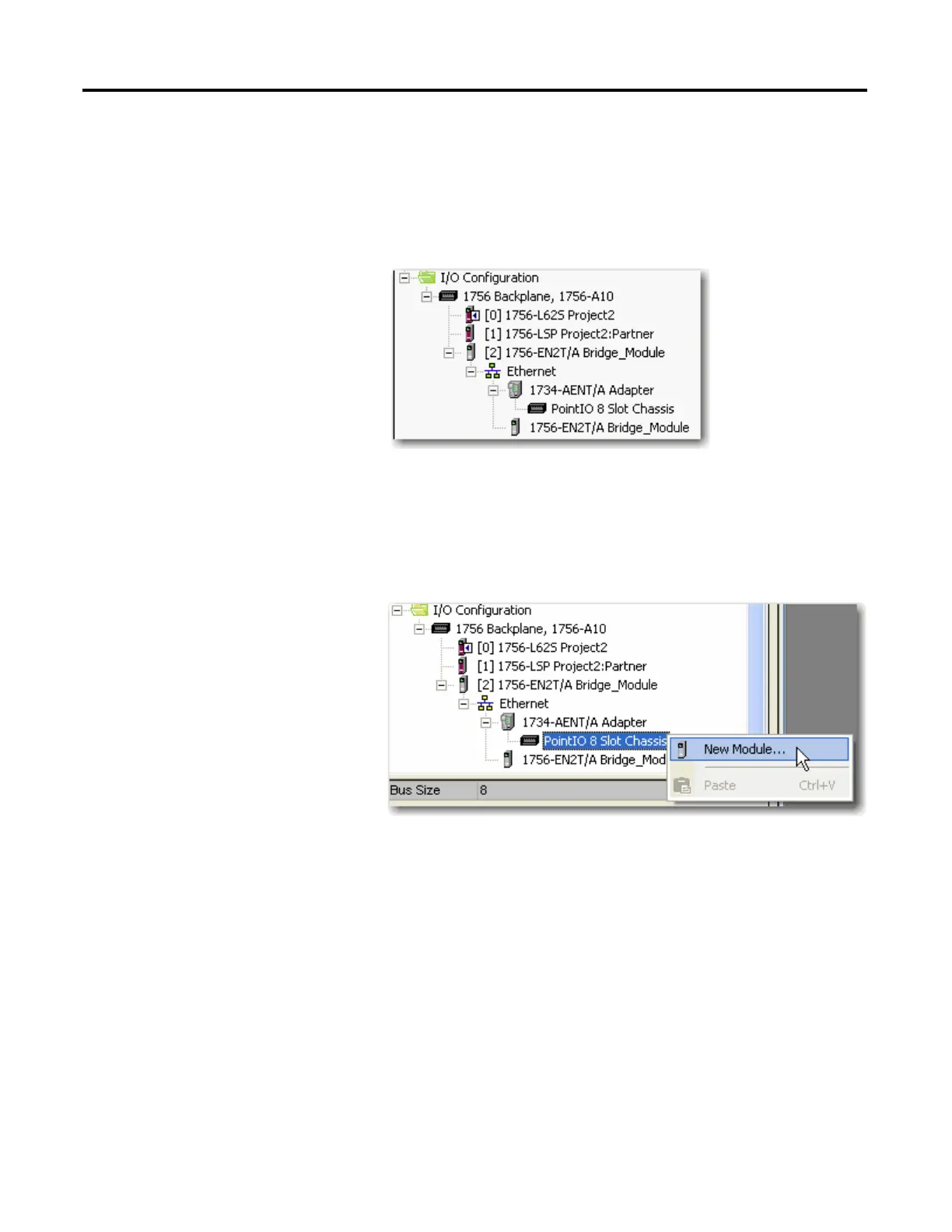

The I/O Configuration tree displays the 1734-AENT adapter.
Add and Configure Safety Input Modules
Follow these steps to add and configure POINT Guard I/O safety modules.
1. Right-click the POINT I/O Chassis and choose New Module.
