56 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 4 Wire the Module
Single Channel Safety Contactor
This example shows wiring and controller configuration when using a POINT
Guard I/O module with a single safety contactor.
When used in combination with the programs of the safety controller, this circuit
configuration is Safety Category 2.

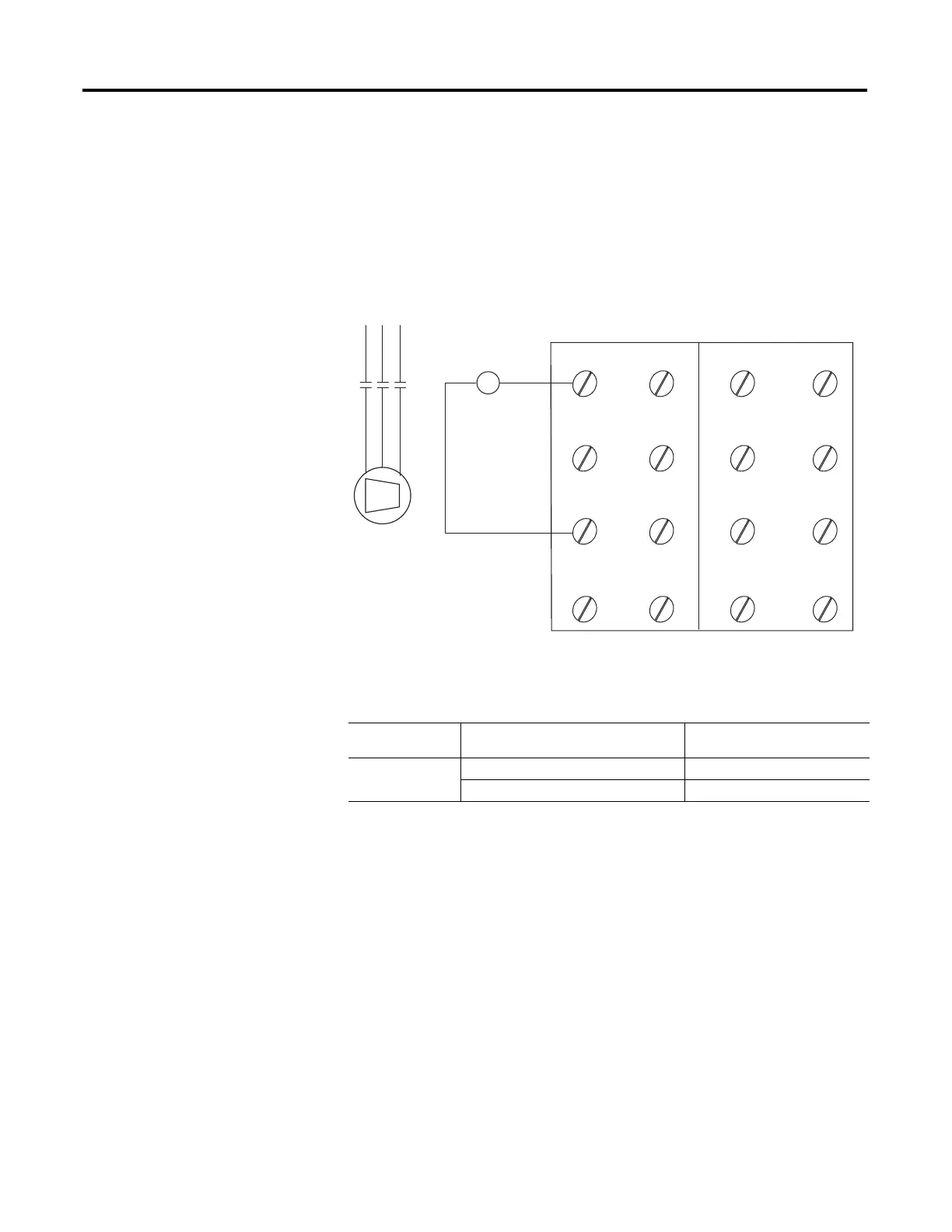

Figure 18 - POINT Guard I/O Module Wiring (single safety contact)
COM COM COMCOM
COM COM COMCOM
00 01 04 05
02 03 06 07
K1K1
M
Where:
O0…O7 = Safety Outputs
COM = Common
Controller
Configuration
Parameter Name Configuration Setting
Safety Output 0 Safety Output 0 Point Mode Safety Pulse Test
Point Operation Type Single Channel
