76 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 6 Configure the Module in a GuardLogix Controller

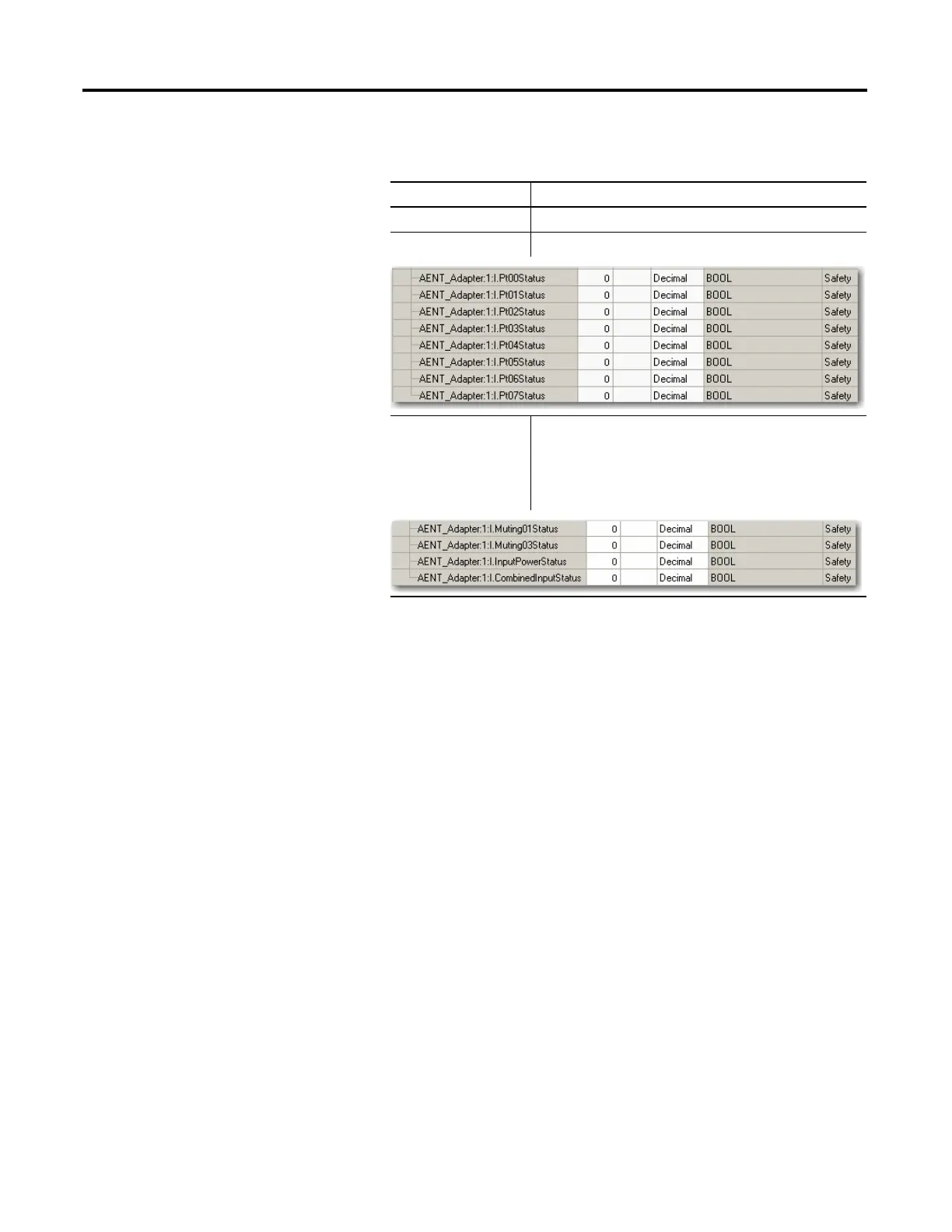

14. From the Input Status pull-down menu, choose the appropriate method
for the input module from the following options.
Choose Description
None There are no status tags, only data for the inputs.
Pt. Status There is one status tag for each input point.
Combined Status -
Muting
• A single BOOL tag represents an AND of the status bits for all
the input points. For example, if any input channel has a fault,
this bit goes LO.
(1)
• A single BOOL tag represents the Input Power Status (error
bit) from the input assembly.
• A muting status tag for test output T1 and T3.
