Rockwell Automation Publication 1734-UM013C-EN-P - August 2010 99
Configure the Module for a SmartGuard Controller Chapter 7

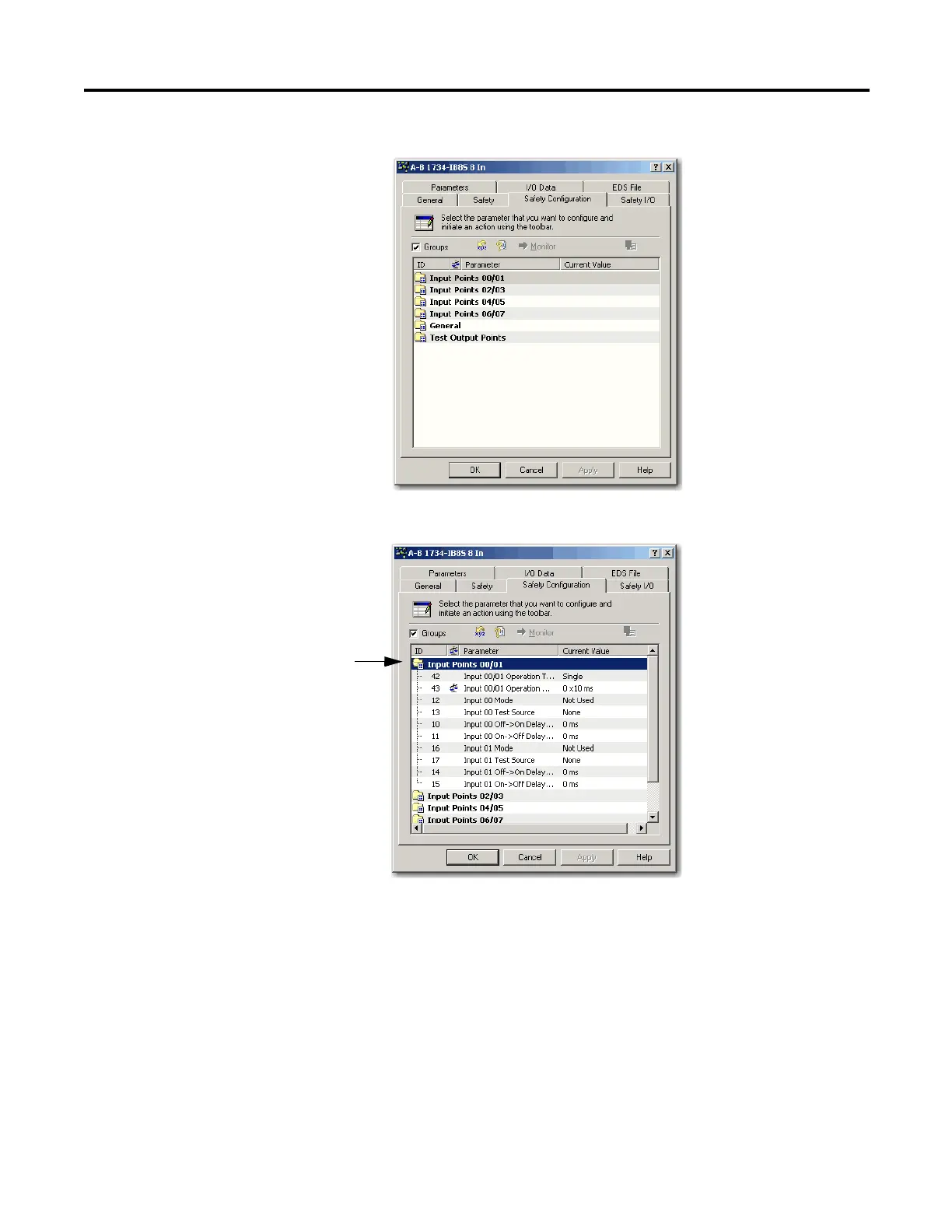

2. Click the Safety Configuration tab.
3. Double-click Input Points 00/01, noting that inputs 00 and 01 are the
E-stop pushbuttons.
