Allen-Bradley 1761-NET-AIC User Manual

Publication 1761-UM004B-EN-P - June 2006
Installation and Wiring 11
Mount the AIC+ Advanced
Interface Converter
The AIC+ interface converter can be mounted in the vertical or
horizontal position. There are no spacing requirements except as
necessary for DIN-rail latch movement.
Mount to a DIN Rail
Follow these steps to install your interface converter.
1. Mount your DIN rail.
2. Snap the DIN-rail latch into the closed position.
3. Hook the top slot over the DIN rail.
4. While pressing the AIC+ interface converter against the rail, snap
the AIC+ interface converter into position.
Follow these steps to remove your interface converter.
1. Place a screwdriver in the DIN-rail latch at the bottom of the
AIC+ interface converter.
2. Holding the AIC+ interface converter, pry downward on the
latch until the AIC+ interface converter is released from the DIN
rail.

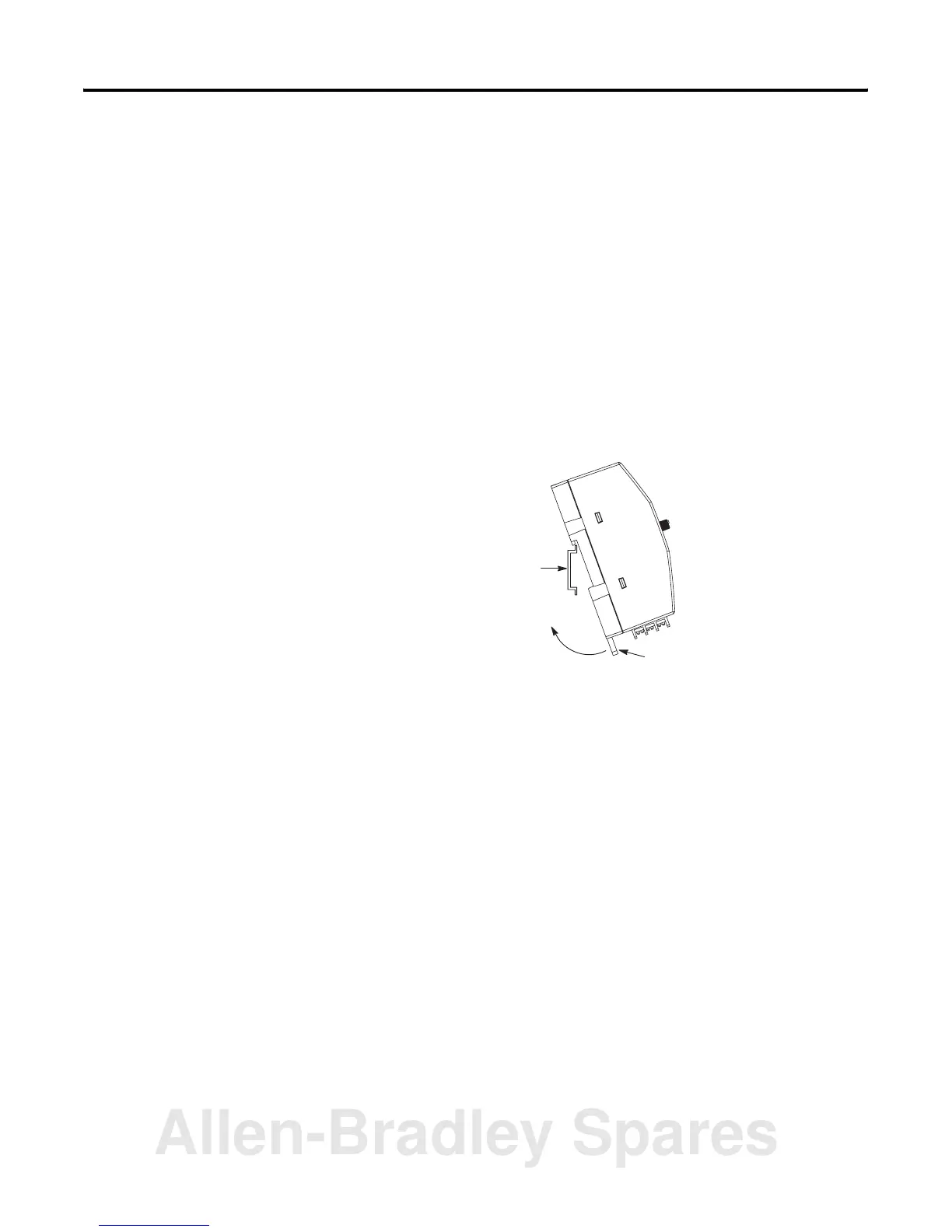

Side View
DIN Rail
Latch
