Allen-Bradley 1761-NET-AIC - Mounting Template

Publication 1761-UM004B-EN-P - June 2006
36 Specifications and Dimensions

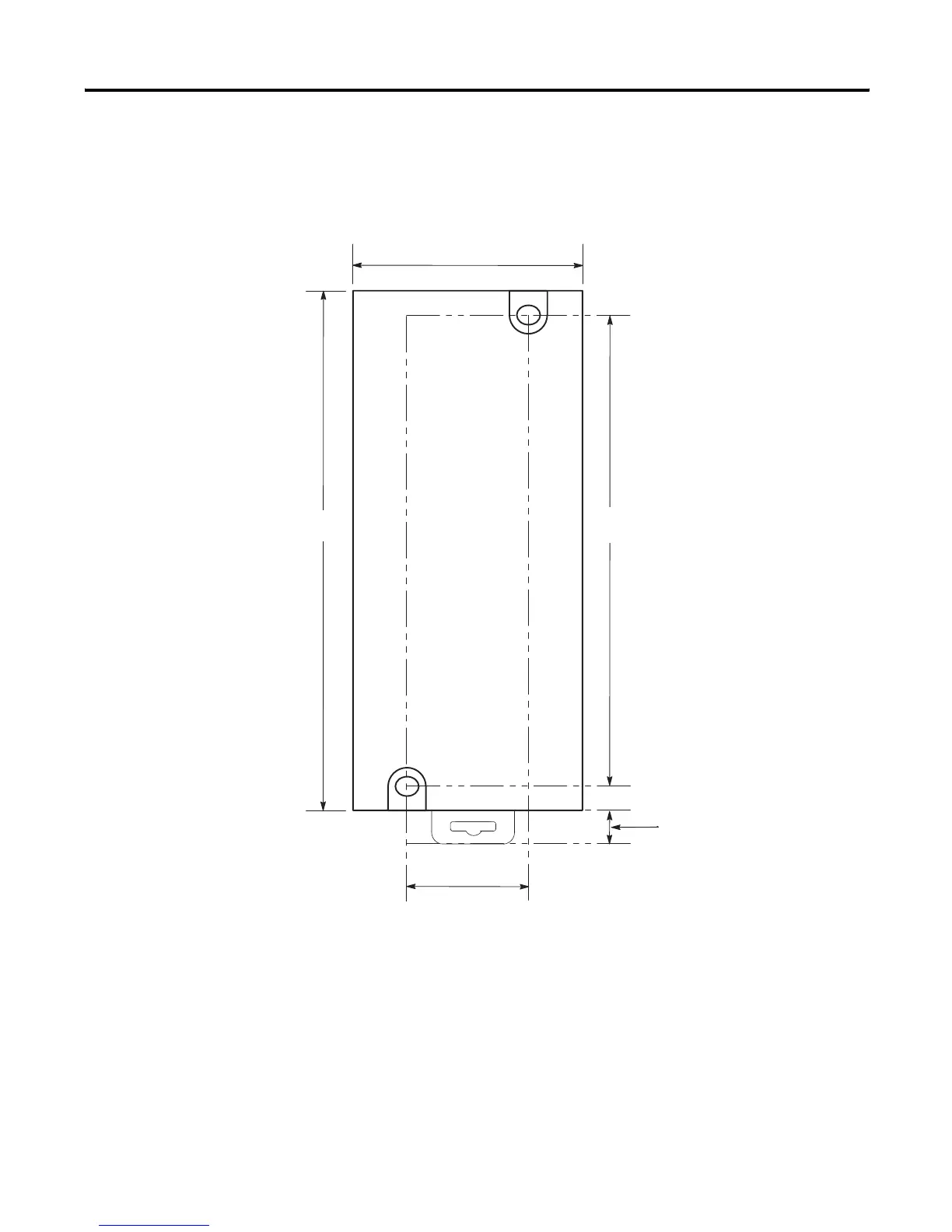

Mounting Template
52.07 mm (2.05 in.)
118 mm (4.64 in.)
107 mm (4.20 in.)
27.7 mm (1.09 in.)
Allow 15 mm (0.6 in.) clearance
for DIN-rail latch movement
during installation and removal.
