Allen-Bradley 1761-NET-AIC User Manual

Publication 1761-UM004B-EN-P - June 2006
Network Connections 23

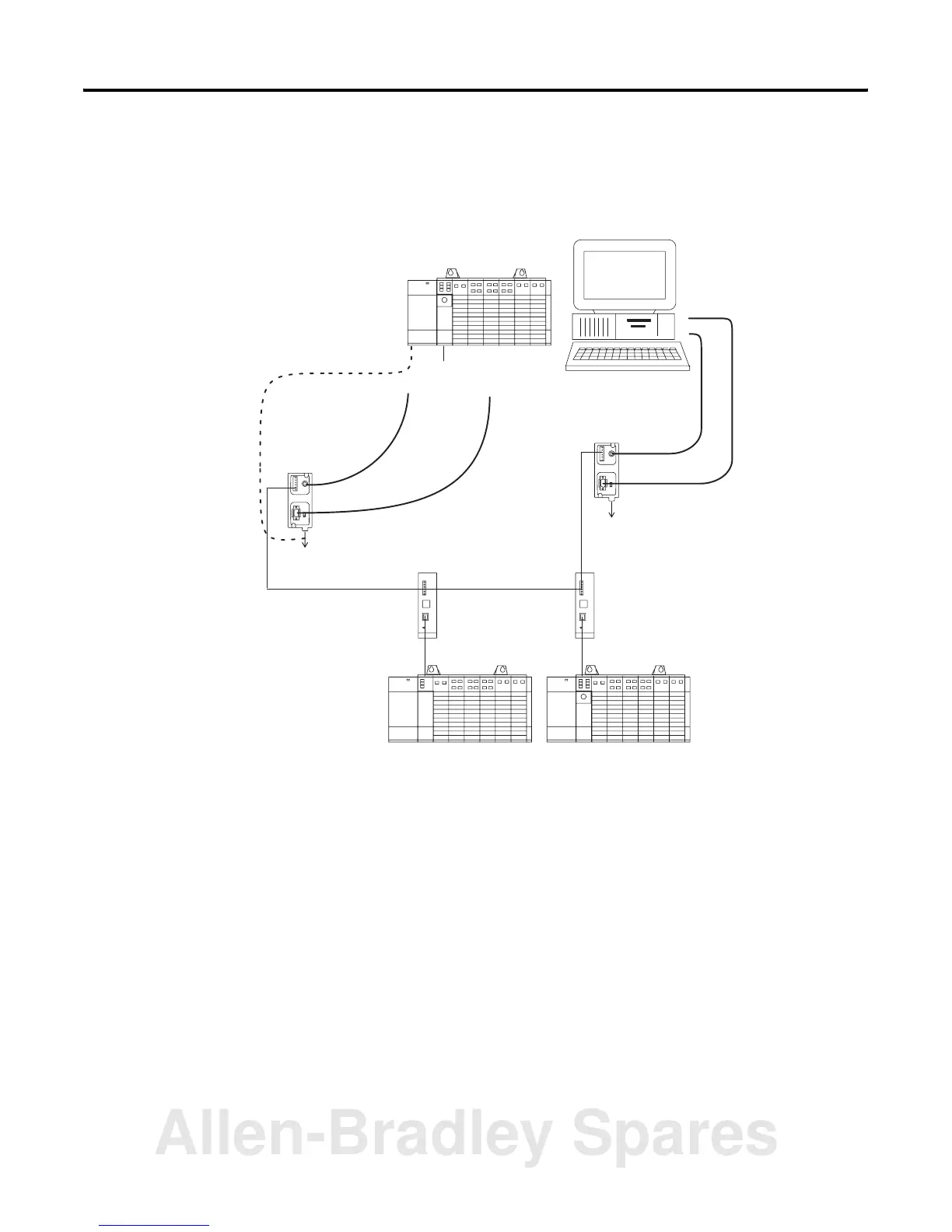

DH-485 Network with SLC 5/03 and SLC 5/04 Processors and a PC
DH-485 Network with SLC 5/03 and SLC 5/04 Processors and a PC
SLC DH-485 Network
PC
Connection from Processor
Channel 0
1761-CBL-AP00 or
1761-CBL-PM02 Cable
1747-CP3 or
1761-CBL-AC00
Cable
1747-CP3 or
1761-CBL-AC00 Cable
24V
dc Power
24V dc
(user
supplied)
SLC 5/03 or SLC 5/04 Processor
SLC 5/02 Processor
SLC 5/03 Processor
1761-CBL-AP00 or
1761-CBL-PM02 Cable
APS
1747-AIC Isolated
Link Coupler
1747-AIC Isolated
Link Coupler
AIC+ Converter
3
1
2
3
1
2
AIC+ Converter
