Allen-Bradley 1761-NET-AIC User Manual

Publication 1761-UM004B-EN-P - June 2006
24 Network Connections

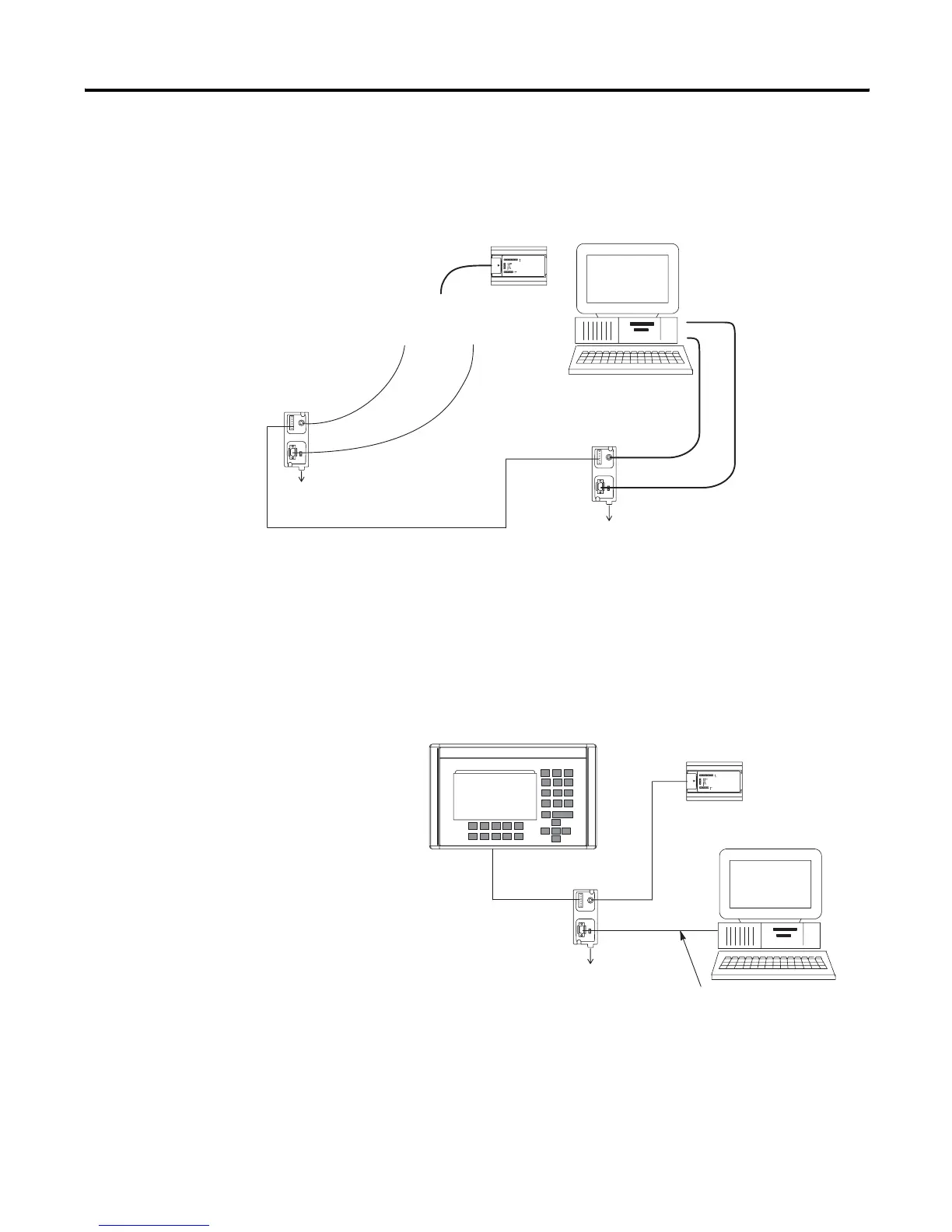

DH-485 Network with a MicroLogix 1000 Controller
DH-485 Network with a MicroLogix 1000 Controller
Typical Three-node OEM Network
Typical Three-node Network
PC
Connection from
Port 1 or Port 2
to MicroLogix 1000 Processor
1761-CBL-AM00 or
1761-CBL-HM02 Cable
24V dc
(User supply needed
if using RS-232 (DB-9, DTE) com port.)
24V dc
(user supplied)
1761-CBL-AP00 or
1761-CBL-PM02 Cable
1747-CP3 or
1761-CBL-AC00 Cable
1761-CBL-AP00 or
1761-CBL-PM02 Cable
MicroLogix 1000 Processor (series C or later)
AIC+ Converter
3
1
2
AIC+ Converter
2
3
1
1761-CBL-AS09 or 1761-CBL-AS03 Cable
1747-CP3 or 1761-CBL-AC00 Cable
PanelView Operator Interface
PC
RJ45 Port
1761-CBL-AM00 or
1761-CBL-HM02 Cable
MicroLogix 1000 Processor (series C or later)
24V dc
(Not needed in this
configuration since the
MicroLogix 1000 processor
provides power to the
AIC+ interface converter.)
AIC+ Converter
3
1
2
