14 Rockwell Automation Publication 6181X-UM001C-EN-P - July 2015
Chapter 1 Features
Hardware Features
The illustration in this section shows the hardware features of the industrial
computers for hazardous locations.

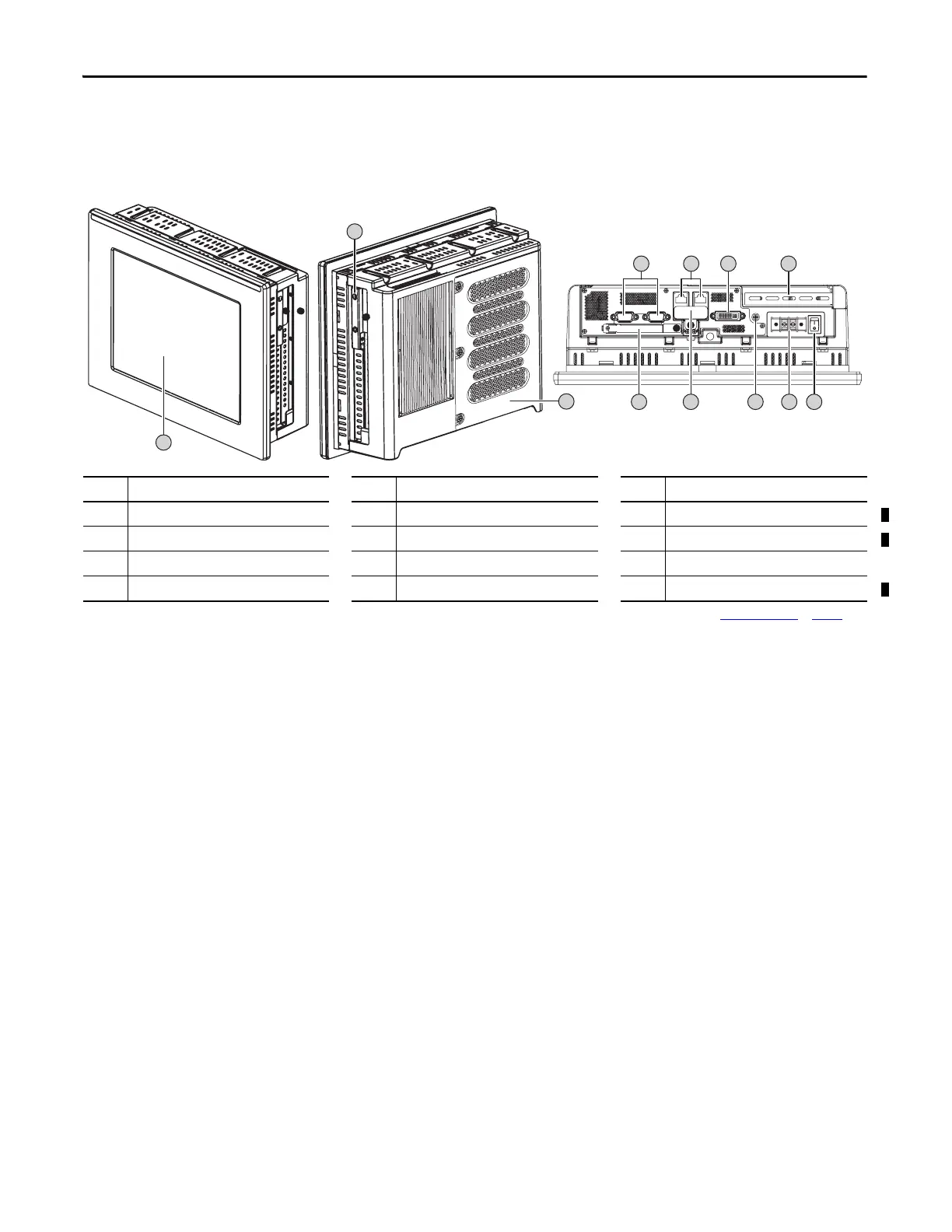

Figure 1 - Industrial Computer for Hazardous Locations
Item Component Item Component Item Component
1 LCD panel (only on display model) 5 1 GB LAN ports (RJ45), 2 9 DC input terminal block
2 CompactFlash Type II solid-state drive bay 6 DVI-I port 10 Functional ground screw
3 Rear cover 7 PCI riser slot cover 11 Hinged door covering 4 USB ports
(1)
4 Serial COM ports (RS-232), 2 8 Power switch 12 CompactFlash Type II card slot
(1)
(1) The USB ports and the bottom CompactFlash card slot are hot swappable but only in nonhazardous locations. For more information about their proper use, refer to Hazardous Locations on page 17.
1
3
2
456 7
12 11 10 9 8
Front, Side, and Back Views Bottom View
