Allen-Bradley Compact 5000 User Manual

44 Rockwell Automation Publication 5069-UM003A-EN-P - May 2018
Chapter 4 Configure Compact 5000 I/O Serial Module
Create a New Module
After you create a Logix Designer application project and, if necessary, add a
Compact 5000 I/O EtherNet/IP adapter to the project, complete the
following steps to create a module in the project.
There are two methods to add modules to your Logix Designer
application project.
• Discover Local I/O Modules
• Discover Remote I/O Modules
Discover Local I/O Modules
To use the Discover Modules method with local I/O modules, complete
these steps.
1. Go online with your Logix Designer application.

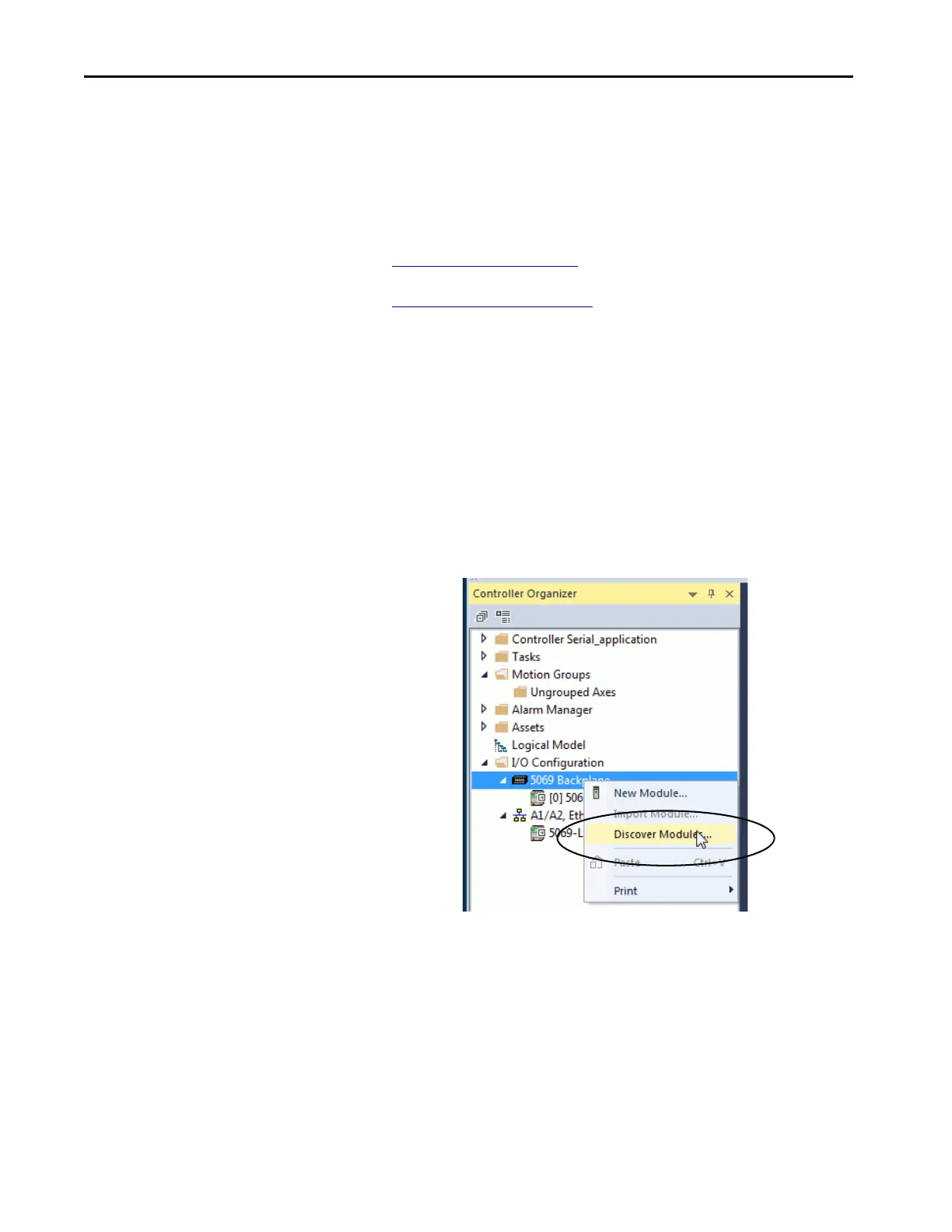

2. Right-click the 5069 Backplane and choose Discover Modules.
The Logix Designer application automatically detects available modules
that are connected to the backplane.
