Rockwell Automation Publication 2080-UM002G-EN-E - March 2015 191

Quickstarts Appendix C

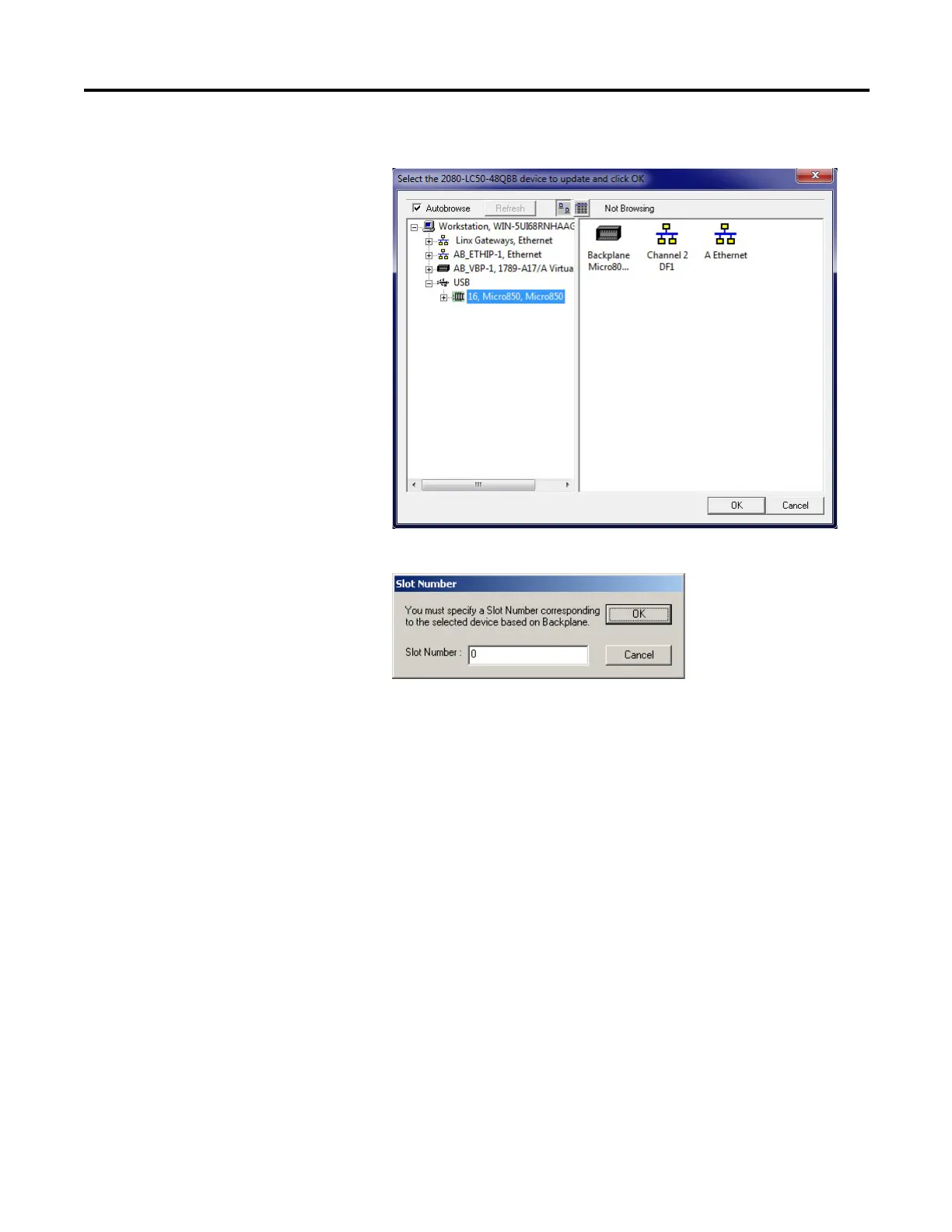

4. Select the controller in the browse window and click OK.

5. If you see the following dialog, leave the Slot Number at 0 and click OK.

This screen is available only for Micro810 controllers.
