Allen-Bradley Micro830 User Manual

Rockwell Automation Publication 2080-UM002G-EN-E - March 2015 51
Communication Connections Chapter 5

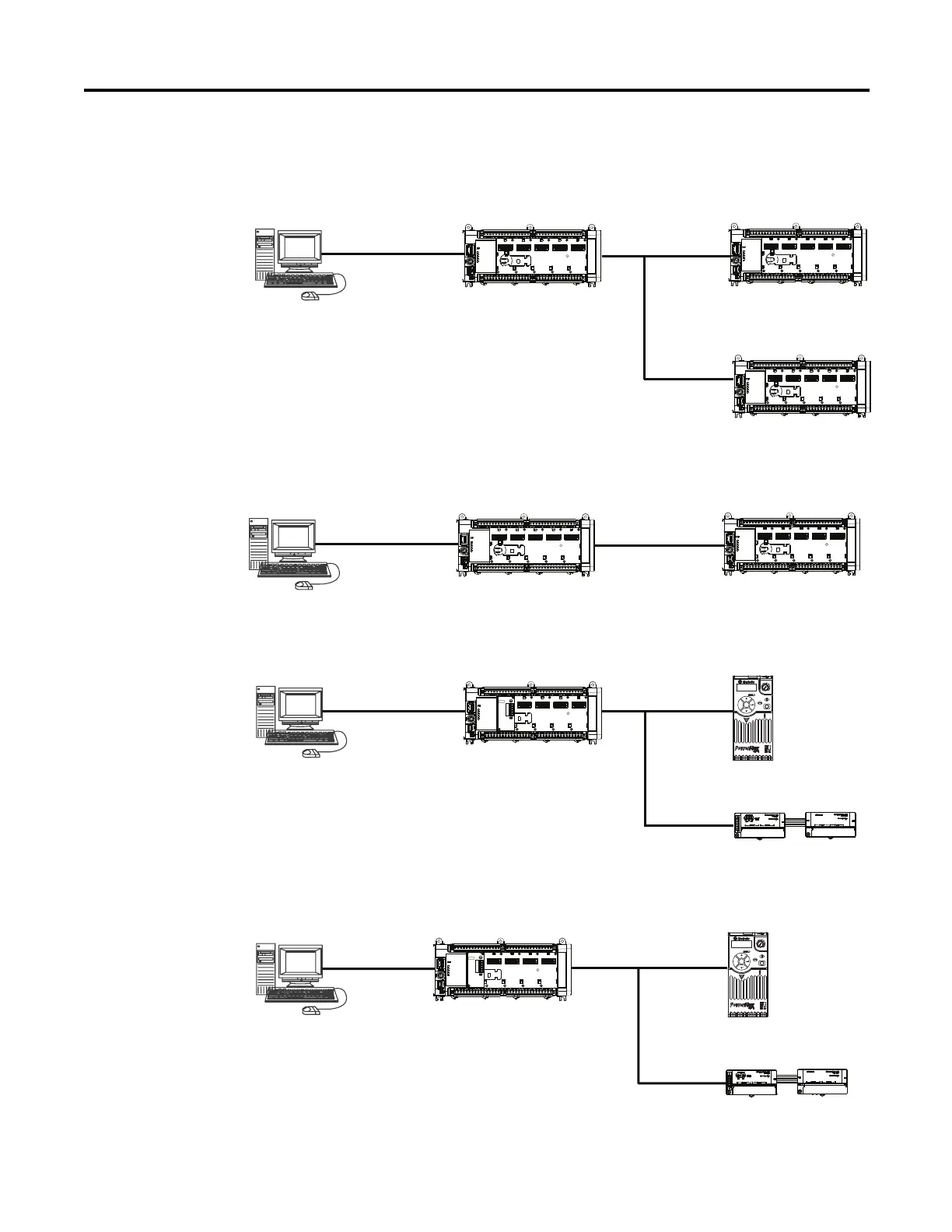

Examples of Supported Architectures
USB to EtherNet/IP
EtherNet/IP to CIP Serial
USB to DeviceNet
EtherNet/IP to DeviceNet
Micro850
controller1
USB
Micro850
controller2
Micro850
controller3
EtherNet/IP
The user can download a program from the PC to controller1 over USB.
Also, the program can be downloaded to controller2 and controller3 over
USB to EtherNet/IP.
For program download
Micro850
controller1
Micro830
controller2
EtherNet/IP
CIP Serial
For program download
Micro850 controller
with
2080-DNET20 plug-in scanner
(Address 0)
USB
DeviceNet
PowerFlex 525 drive
with
25-COMM-D adapter
(Address 1)
CompactBlock LDX I/O
(Address 2)
Esc
Sel
For program download
DeviceNet
PowerFlex 525 drive
with
25-COMM-D adapter
(Address 1)
EtherNet/IP
Esc
Sel
Micro850 controller
with
2080-DNET20 plug-in scanner
(Address 0)
CompactBlock LDX I/O
(Address 2)
The user can use Connected Components Workbench to
configure the PowerFlex drives.
For program download
