Allen-Bradley Micro830 User Manual

38 Rockwell Automation Publication 2080-UM002G-EN-E - March 2015
Chapter 4 Wire Your Controller
transient characteristic of the particular inductive device. See Recommended
Surge Suppressors on page38 for recommended suppressors.
Recommended Surge Suppressors
Use the Allen-Bradley surge suppressors shown in the following table for use with
relays, contactors, and starters.

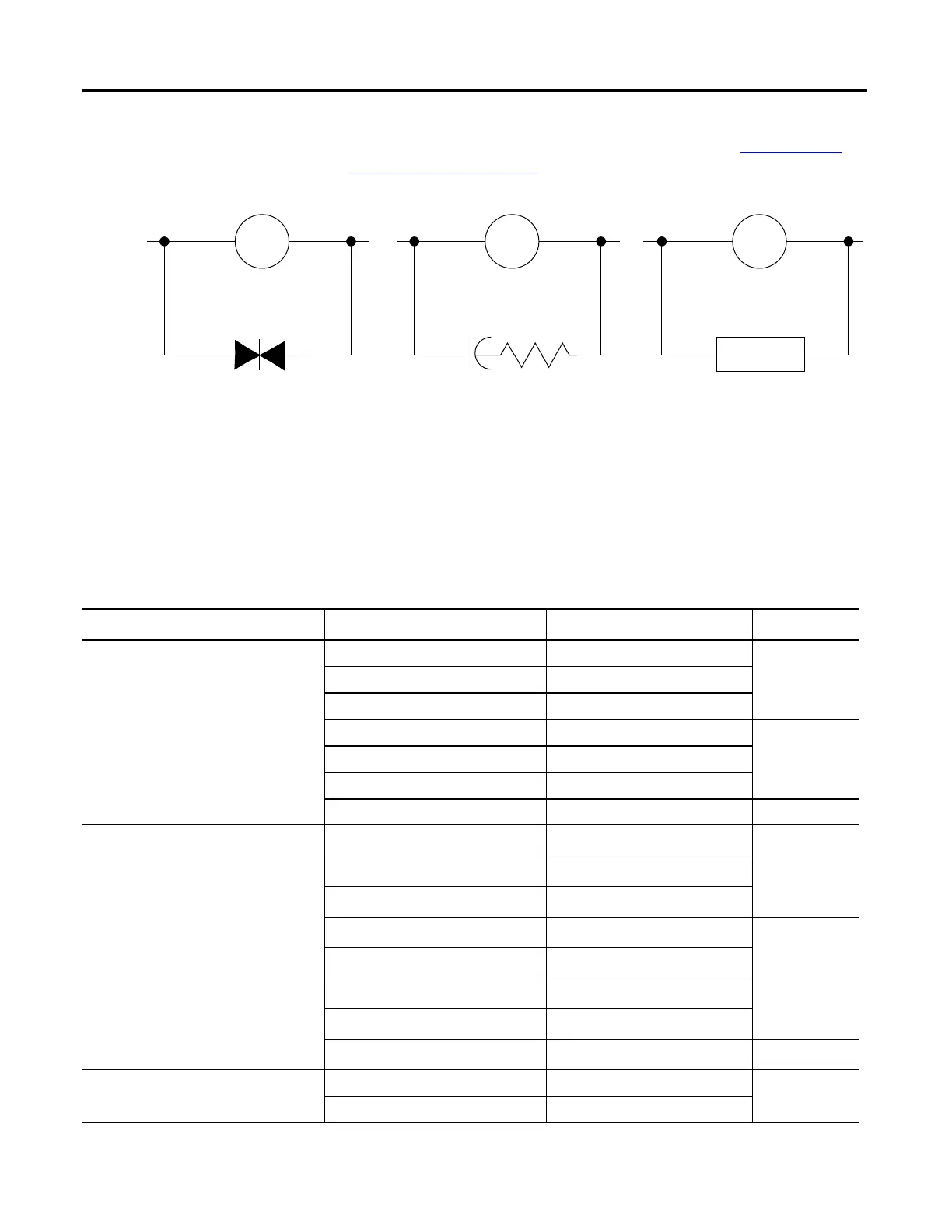

Surge Suppression for Inductive AC Load Devices
Output device Output deviceOutput device
Varistor
RC network
Surge
suppressor
Recommended Surge Suppressors
Device Coil Voltage Suppressor Catalog Number
Typ e
(4)
Bulletin 100/104K 700K 24…48V AC 100-KFSC50 RC
110…280V AC 100-KFSC280
380…480V AC 100-KFSC480
12…55 V AC, 12…77V DC 100-KFSV55 MOV
56…136 VAC, 78…180V DC 100-KFSV136
137…277V AC, 181…250 V DC 100-KFSV277
12…250V DC 100-KFSD250 Diode
Bulletin 100C, (C09 - C97) 24…48V AC
100-FSC48
(1)
RC
110…280V AC
100-FSC280
(1)
380…480V AC
100-FSC480
(1)
12…55V AC, 12…77V DC
100-FSV55
(1)
MOV
56…136V AC, 78…180V DC
100-FSV136
(1)
137…277V AC, 181…250V DC
100-FSV277
(1)
278…575V AC
100-FSV575
(1)
12…250V DC
100-FSD250
(1)
Diode
Bulletin 509 Motor Starter Size 0 - 5 12…120V AC 599-K04 MOV
240…264V AC 599-KA04
