194 Rockwell Automation Publication 2080-UM002G-EN-E - March 2015

Appendix C Quickstarts

Establish Communications

Between RSLinx and a

Micro830/Micro850

Controller through USB

This quick start shows you how to get RSLinx RSWho to communicate with a

Micro830 or Micro850 controller through a USB.

RSLinx Classic is installed as part of the Connected Components Workbench

software installation process. The minimum version of RSLinx Classic with full

Micro800 controller support is 2.57, build 15 (released March 2011).

1. Power up the Micro830/Micro850 controller.

2. Plug USB A/B cable directly between your PC and the Micro830/

Micro850 controller.

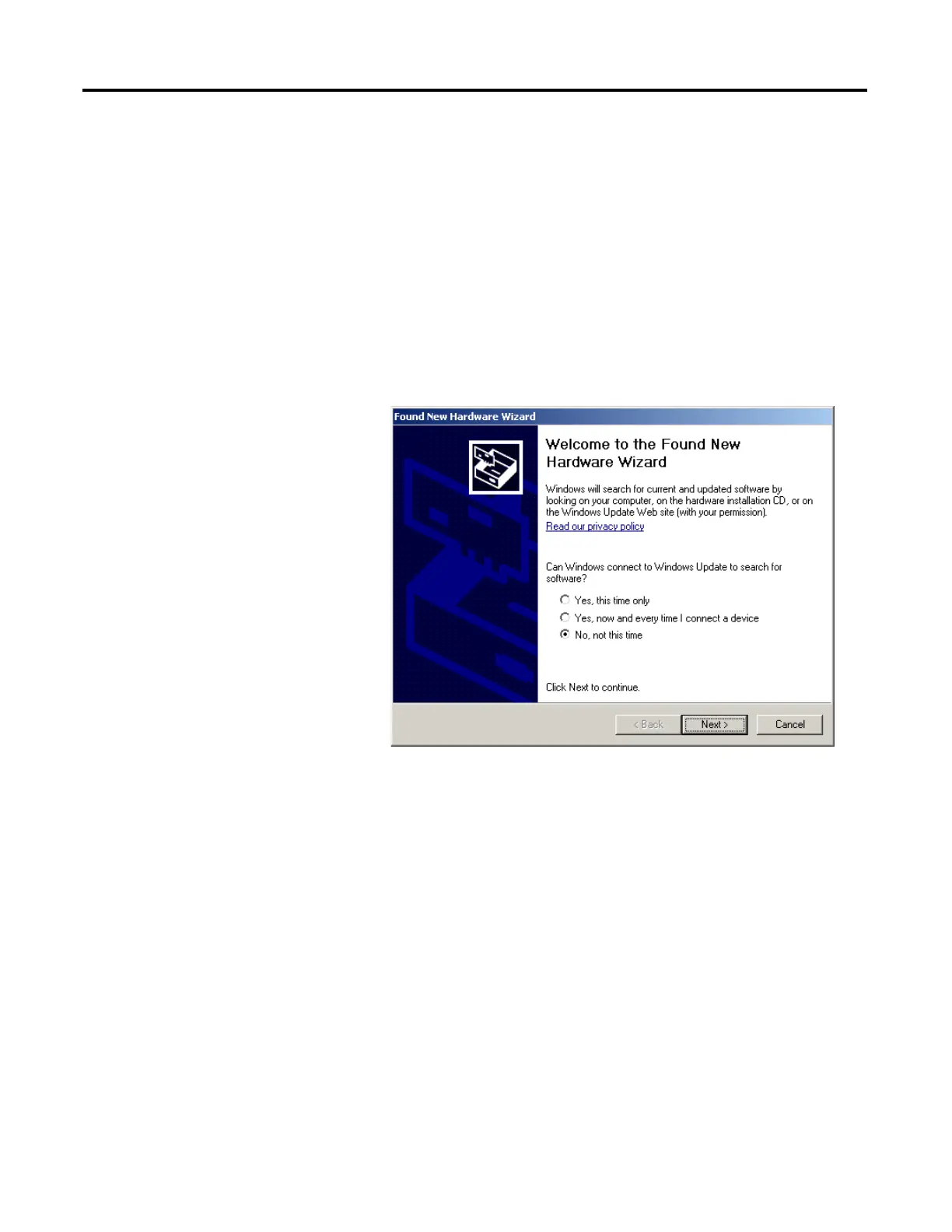

3. Windows should discover the new hardware. Click No, not this time and

then click Next.
