Rockwell Automation Publication 2080-UM002G-EN-E - March 2015 193

Quickstarts Appendix C

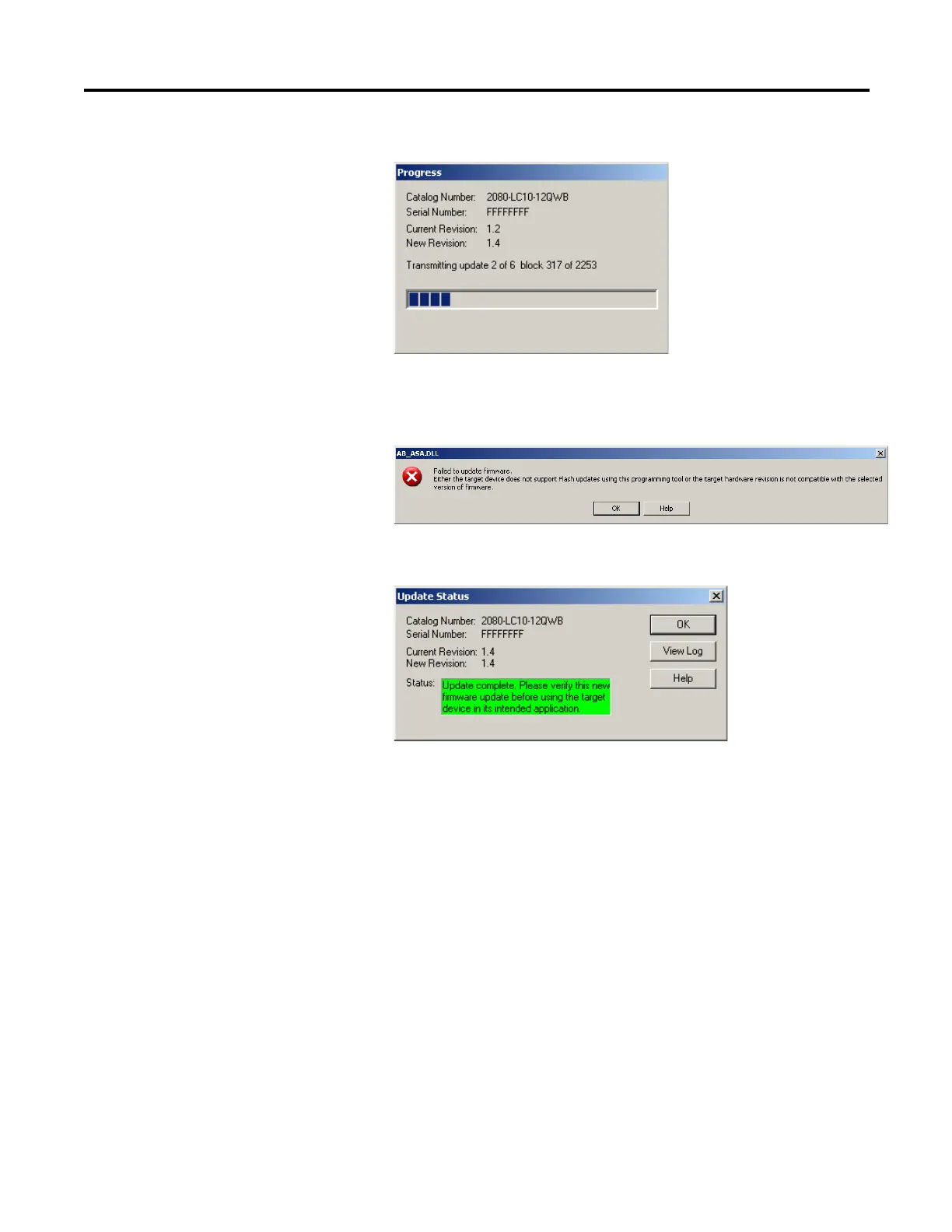

The next screen shows the download progress.

If you see the following error message instead, check to see if the controller

is faulted or in Run mode. If so, clear the fault or switch to Program mode,

click OK and try again.

8. When the flash update is complete, you see a status screen similar to the

following. Click OK to complete the update.
