206 Rockwell Automation Publication 2080-UM002G-EN-E - March 2015
Appendix C Quickstarts
Create the HSC Project and Variables

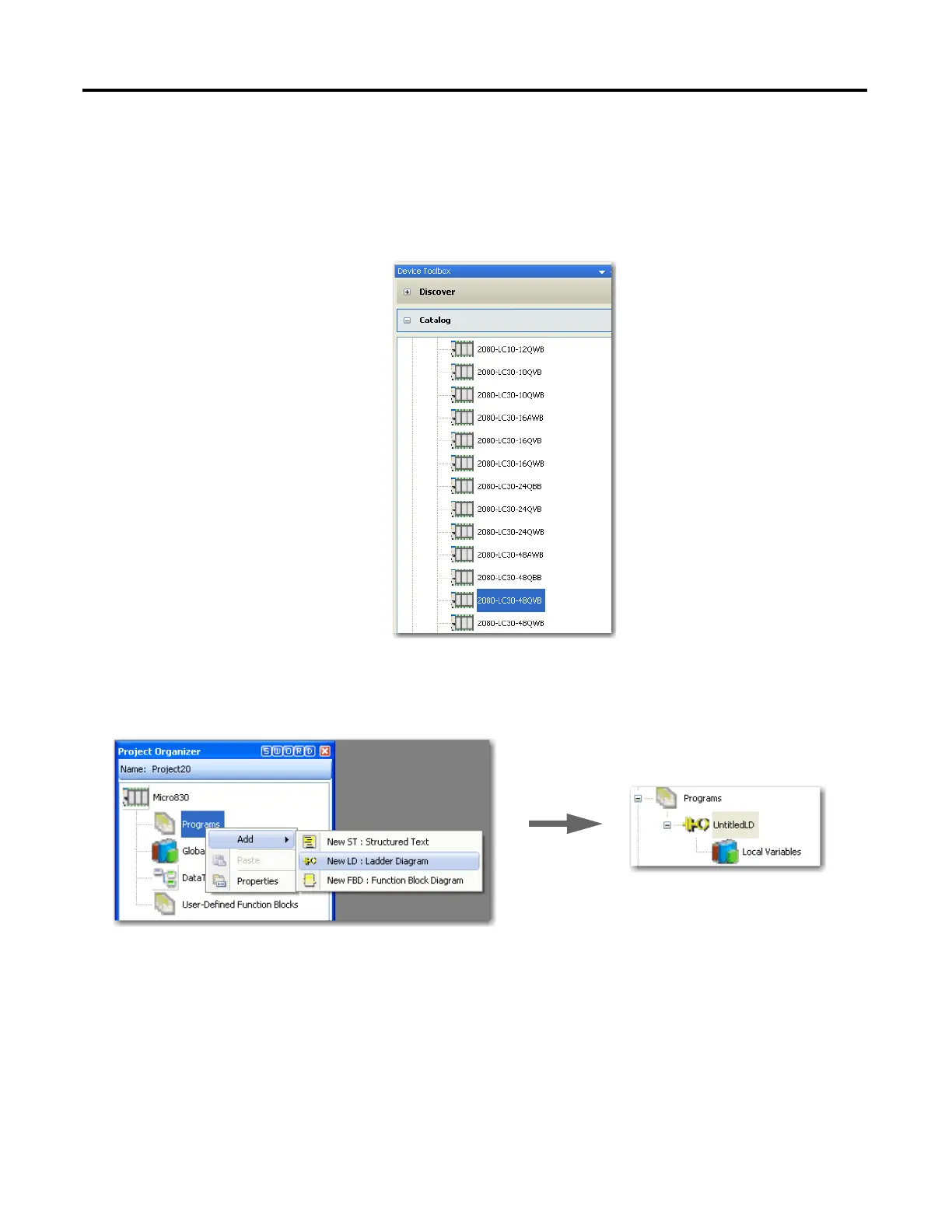

1. Start Connected Components Workbench and open a new project. From
the Device Toolbox, go to Catalog → Controllers. Double-click your
controller
(1)
or drag and drop it onto the Project Organizer windows.
2. Under Project Organizer, right-click Programs. Click Add New LD:
Ladder Diagram to add a new ladder logic program.
(1) The HSC is supported on all Micro830 and Micro850 controllers, except on 2080-LCxx-xxAWB types.
