Allen-Bradley Micro830 User Manual

Rockwell Automation Publication 2080-UM002G-EN-E - March 2015 243
Appendix E
Troubleshooting
Status Indicators on the
Controller
Micro830 Controllers
Micro850 Controllers
Status Indicator Description
Description State Indicates
1 Input status Off Input is not energized
On Input is energized (terminal status)
2 Power status Off No input power, or power error condition
Green Power on
3 Run status Off Not executing the user program
Green Executing the user program in run mode
Flashing green Memory module transfer in progress
1
2
3
4
5
6
7
45031a

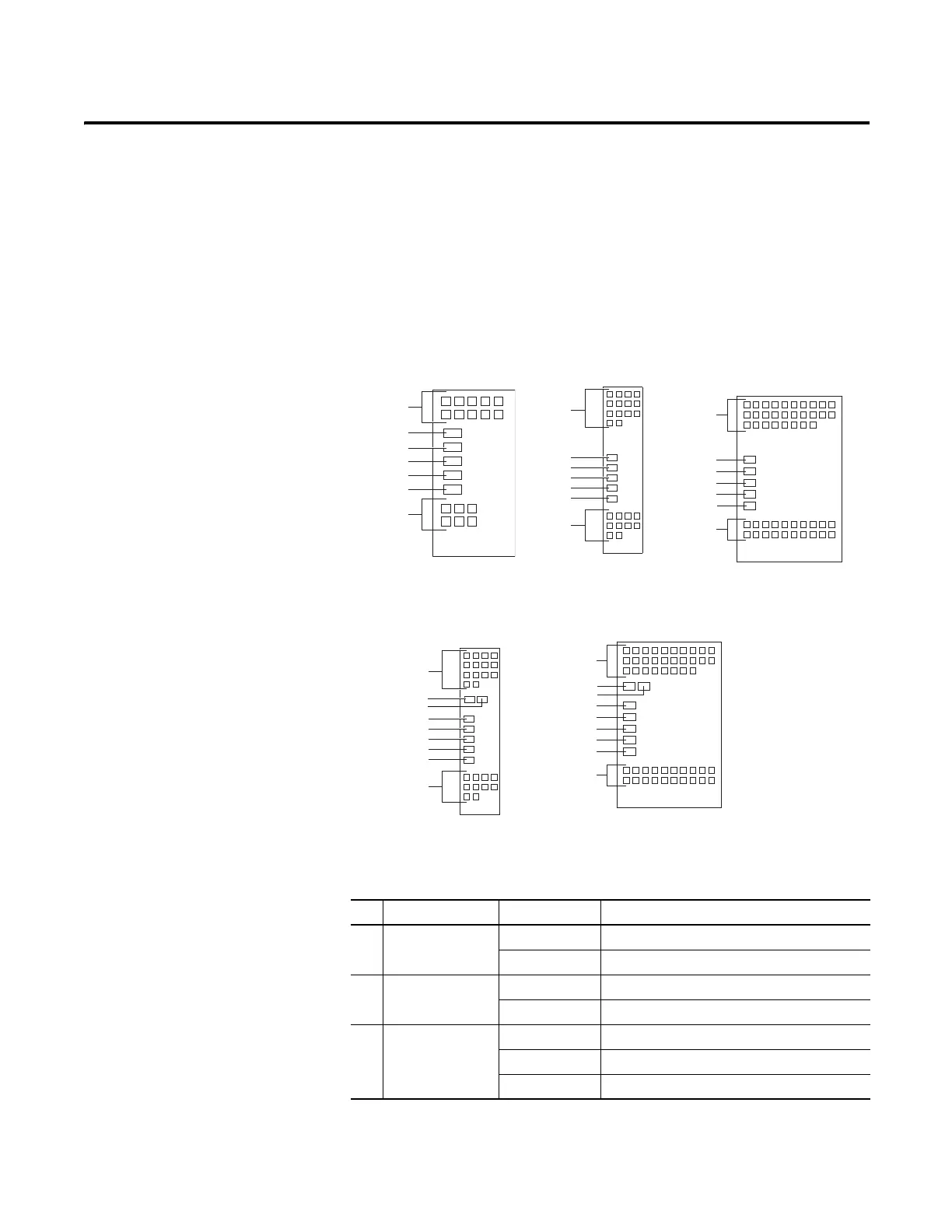

Status Indicators
1
2
3
4
5
6
7
45017a
1
2
3
4
5
6
7
45037a
10/16 Point Controllers 24 Point Controllers 48 Point Controllers
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
45934
45935
