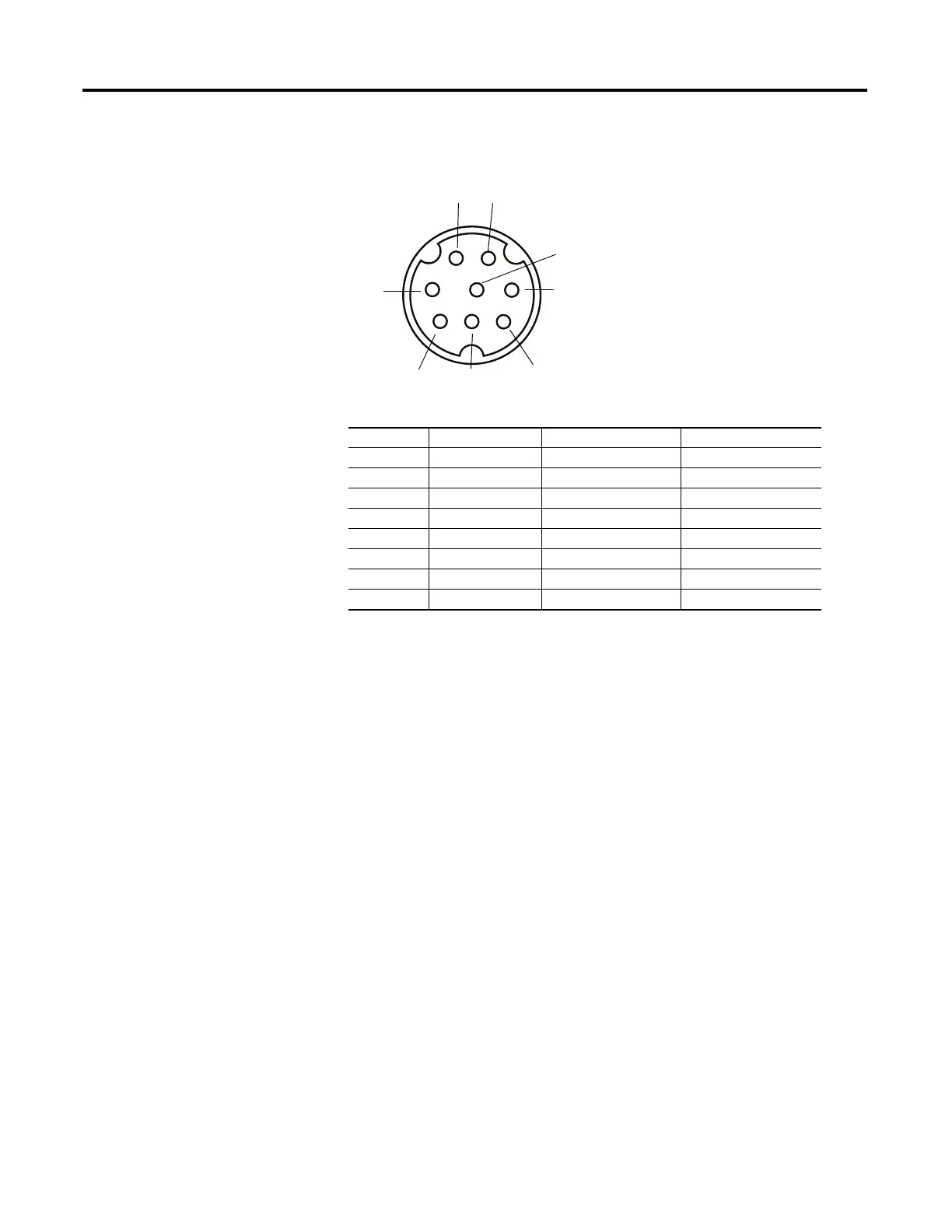

46 Rockwell Automation Publication 2080-UM002G-EN-E - March 2015

Chapter 4 Wire Your Controller

Embedded Serial Port

Pinout table

Pin Definition RS-485 Example RS-232 Example

1 RS-485+ B(+) (not used)

2 GND GND GND

3 RS-232 RTS (not used) RTS

4 RS-232 RxD (not used) RxD

5 RS-232 DCD (not used) DCD

6 RS-232 CTS (not used) CTS

7 RS-232 TxD (not used) TxD

8 RS-485- A(-) (not used)

678
