72 Rockwell Automation Publication 2080-UM002G-EN-E - March 2015

Chapter 7 Motion Control

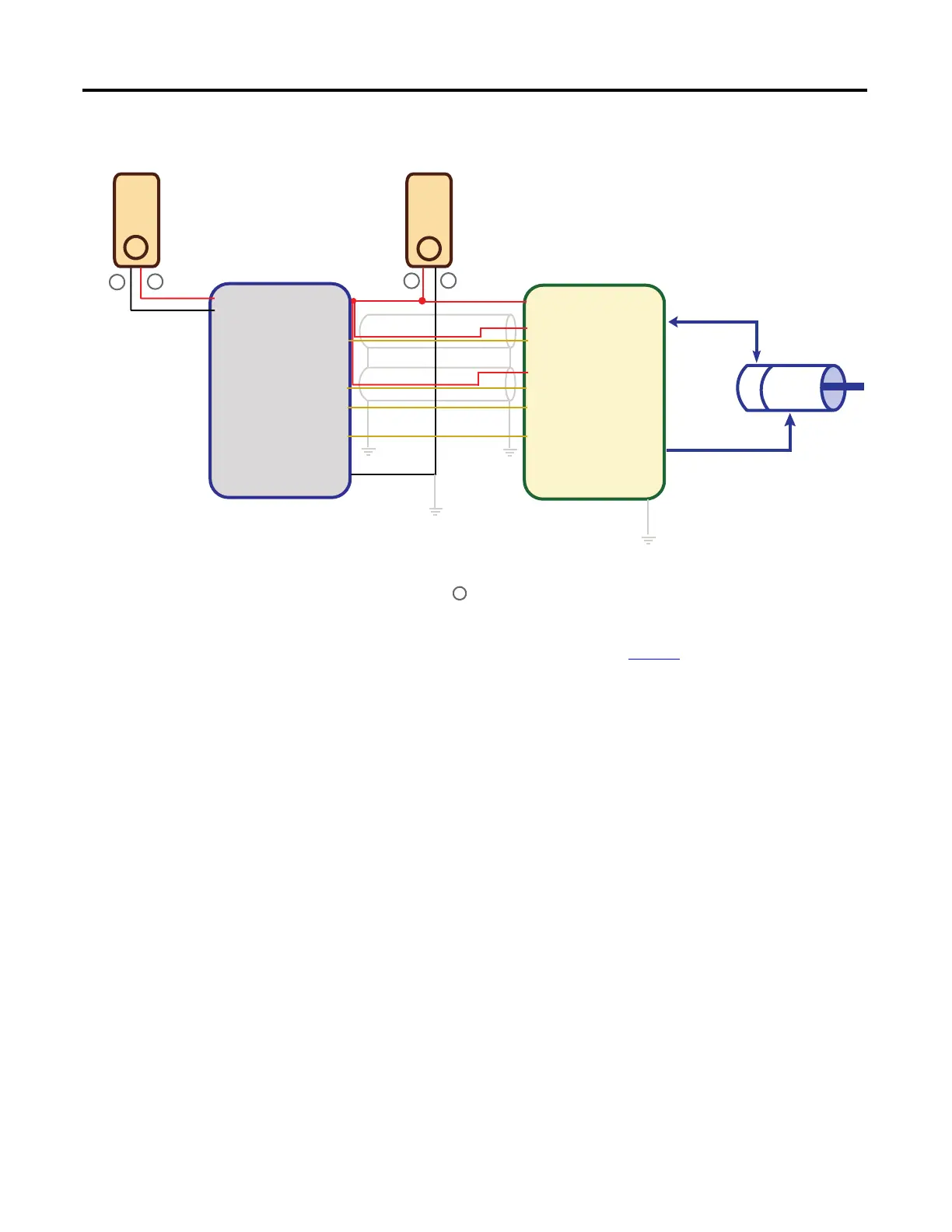

Sample Motion Wiring Configuration on 2080-LC30-xxQVB/2080-LC50-xxQVB

2080-LC30-xxQVB

2080-LC50-xxQVB

Kinetix3

+DC 24

-DC 24

+CM0

+CM1

O-00

O-03

O-06

O-07

-CM0

-CM1

Pin 1, 2

Pin 49(CLK+)

Pin 12(CLK-)

Pin25(DIR+)

Pin 14(DIR-)

Pin 3(Enable)

Pin 7(RST)

24V

Power

Supply

–

Encoder

Motor

Encoder signal cable

Motor power cable

24V

Power

Supply

To help you configure Kinetix3 drive parameters so the drive can communicate and be controlled

by a Micro830/Micro850 controller, see publication CC-QS025.

46056

Notes:

(1) Drive Enable (Pin 3) and Reset Drive (Pin 7) will be operating as sourcing inputs when (Pin1,2)

connected to – of the Power Supply 2.
