Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 163
Use the High-Speed Counter and Programmable Limit Switch Chapter 8
An HSC interrupt is a mechanism that Micro830, Micro850, and Micro870
controllers provide to execute selected user logic at a pre-configured event.
HSC0 is used in this document to define how HSC interrupts work.
HSC Interrupt Configuration
In the User Interrupt configuration window, select HSC, and HSC ID, which is
the interrupt triggering the User Interrupt.

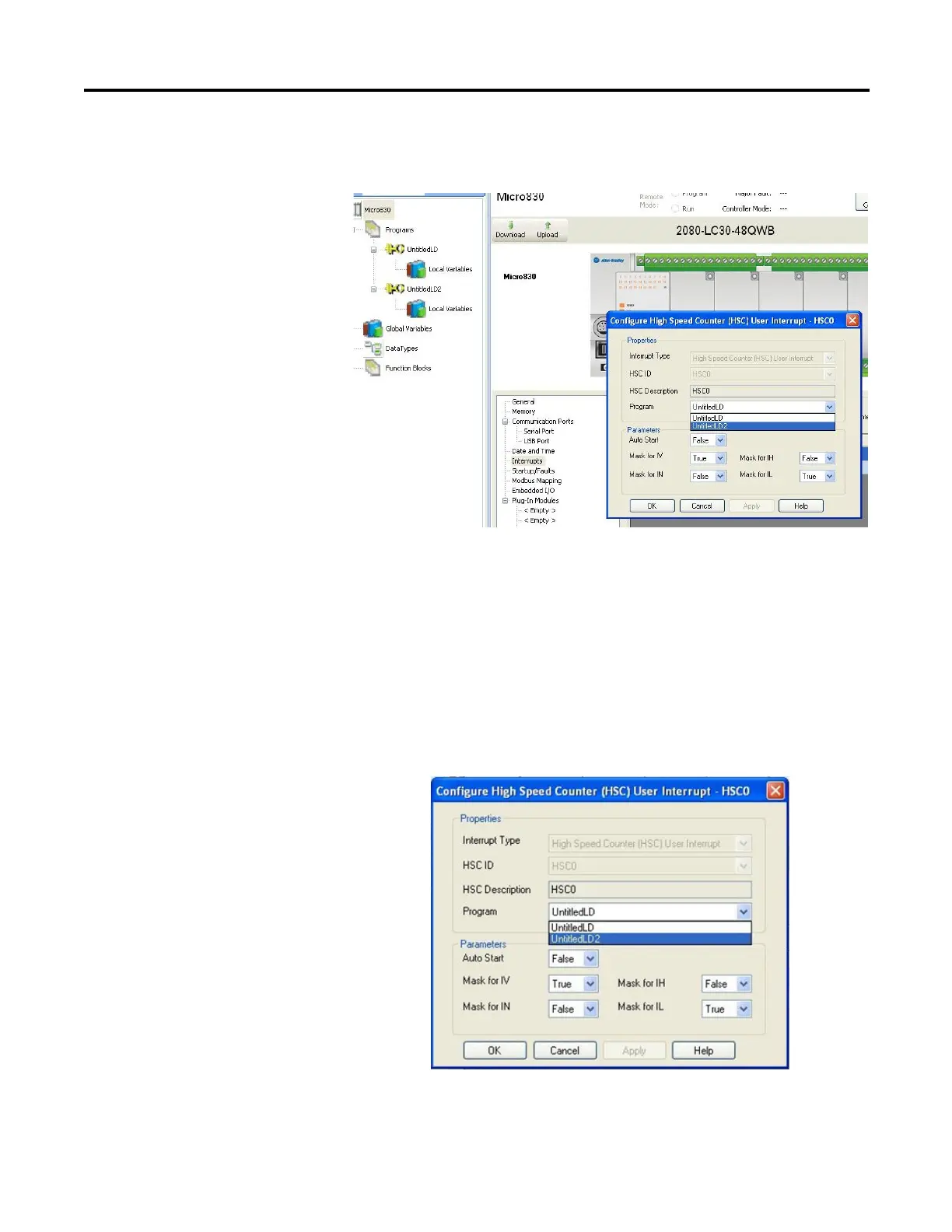

The following diagram shows the selectable fields in the Interrupt configuration
window.
