Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 67

Communication Connections Chapter 5

Configure Modbus RTU

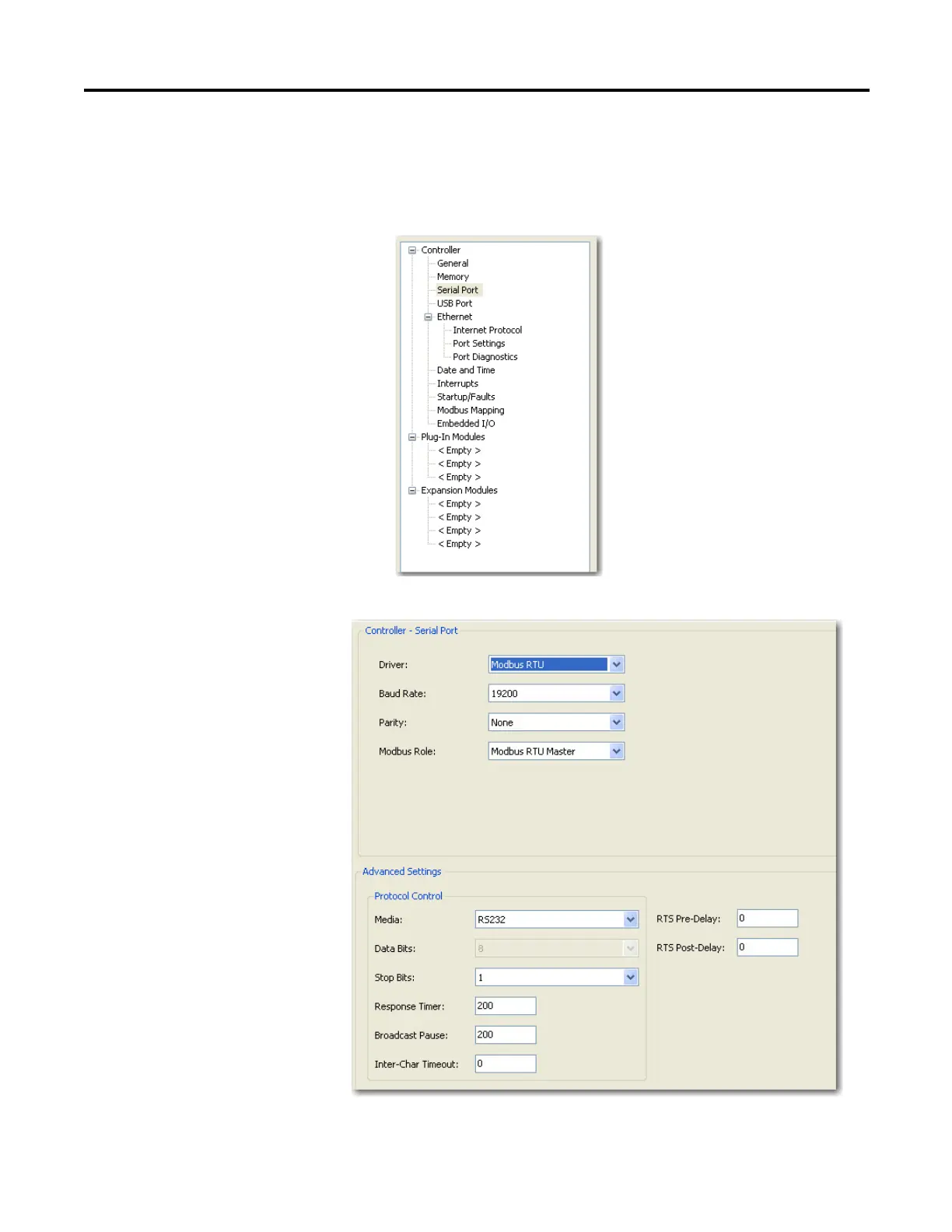

1. Open your Connected Components Workbench project. On the device

configuration tree, go to the Controller properties. Click Serial Port.

2. Select Modbus RTU on the Driver field.
