Allen-Bradley Micro870

Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 37
Install Your Controller Chapter 3

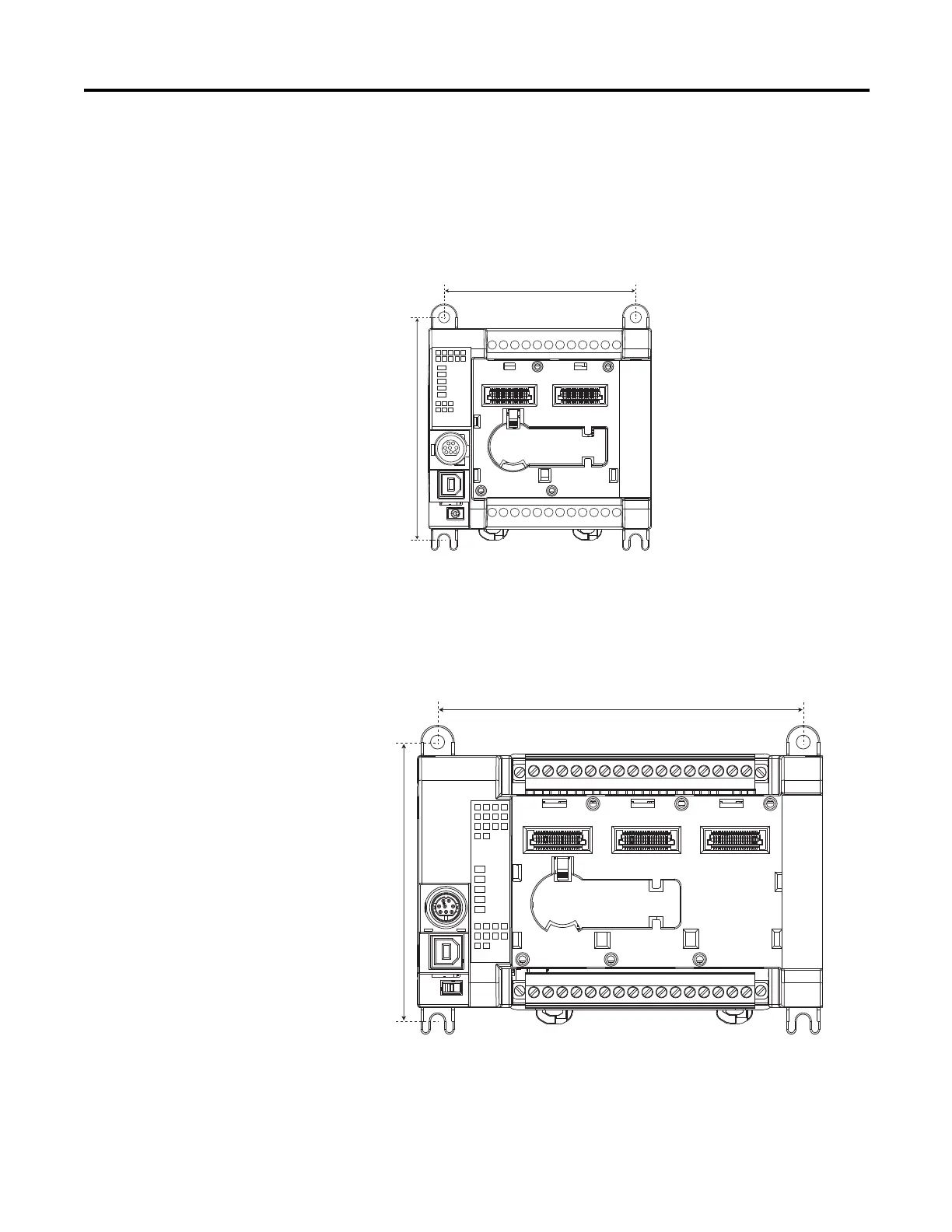

Panel Mounting Dimensions
Micro830 10-Point and 16-Point Controllers
2080-LC30-10QWB, 2080-LC30-10QVB,
2080-LC30-16AWB, 2080-LC30-16QWB, 2080-LC30-16QVB
Micro830 24-Point Controllers
2080-LC30-24QWB, 2080-LC30-24QVB, 2080-LC30-24QBB
45325
86 mm (3.39 in.)
100 mm (3.94 in.)
45326
100 mm (3.94 in.)
131 mm (5.16 in.)
