Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 65

Communication Connections Chapter 5

Configure Serial Port

You can configure the Serial Port driver as CIP Serial, Modbus RTU, ASCII or

Shutdown through the Device Configuration tree in Connected Components

Workbench.

Configure CIP Serial Driver

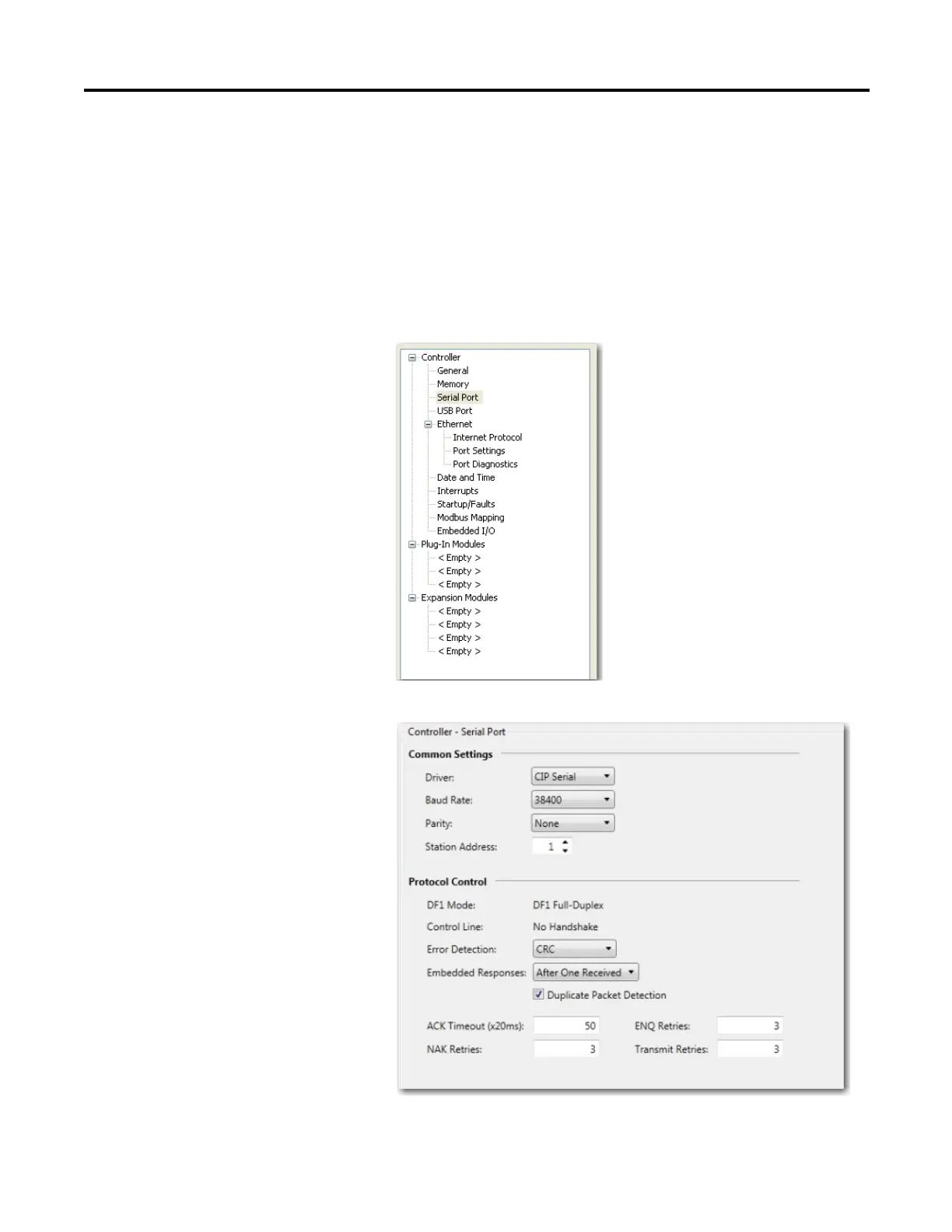

1. Open your Connected Components Workbench project. On the device

configuration tree, go to the Controller properties. Click Serial Port.

2. Select CIP Serial from the Driver field.
