266 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019

Appendix C Quickstarts

Create the HSC Project and Variables

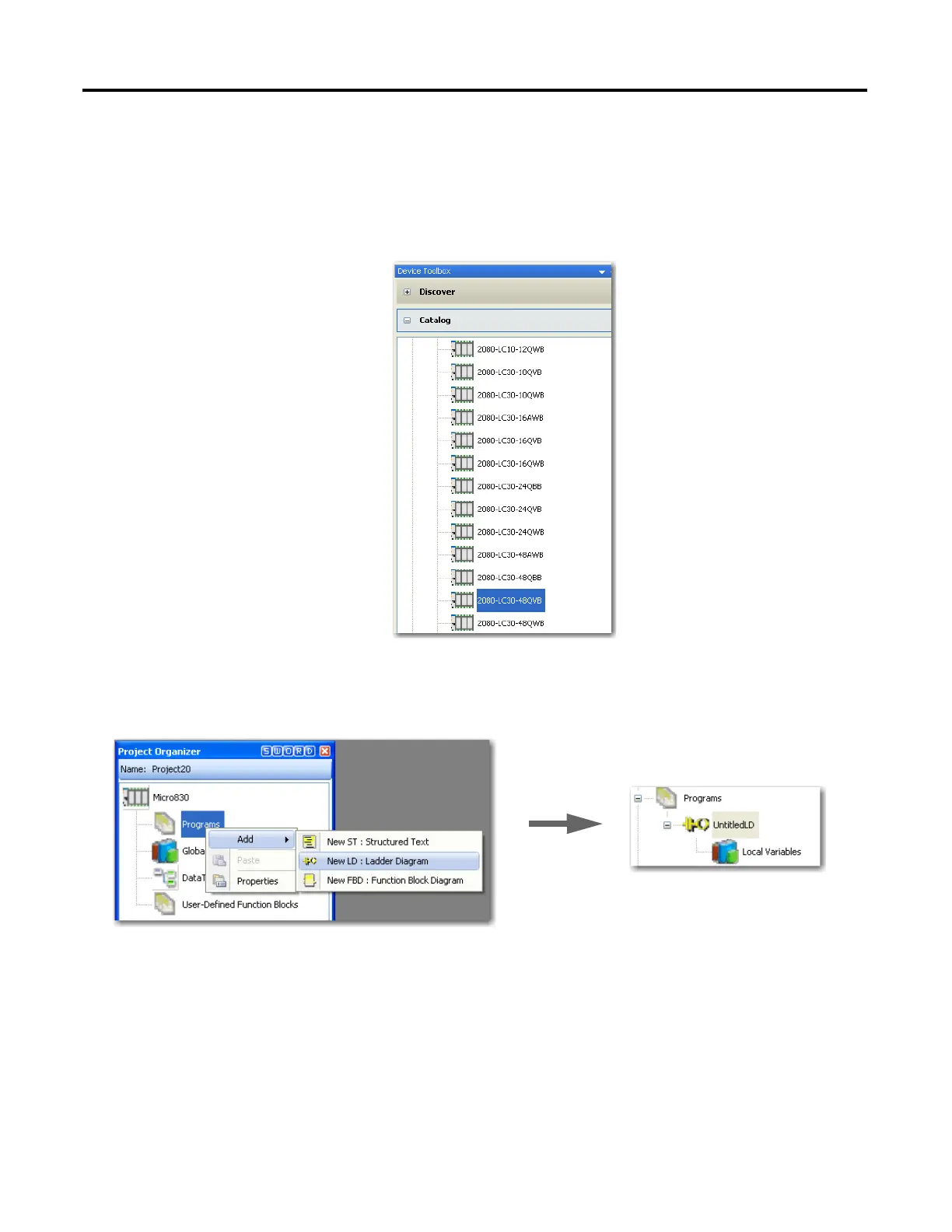

1. Start Connected Components Workbench and open a new project. From

the Device Toolbox, go to Catalog → Controllers. Double-click your

controller

(1)

or drag and drop it onto the Project Organizer windows.

2. Under Project Organizer, right-click Programs. Click Add New LD:

Ladder Diagram to add a new ladder logic program.

(1) The HSC is supported on all Micro830, Micro850, and Micro870 controllers, except on 2080-LCxx-xxAWB types.
