206 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019

Chapter 10 Using microSD Cards

Build and download

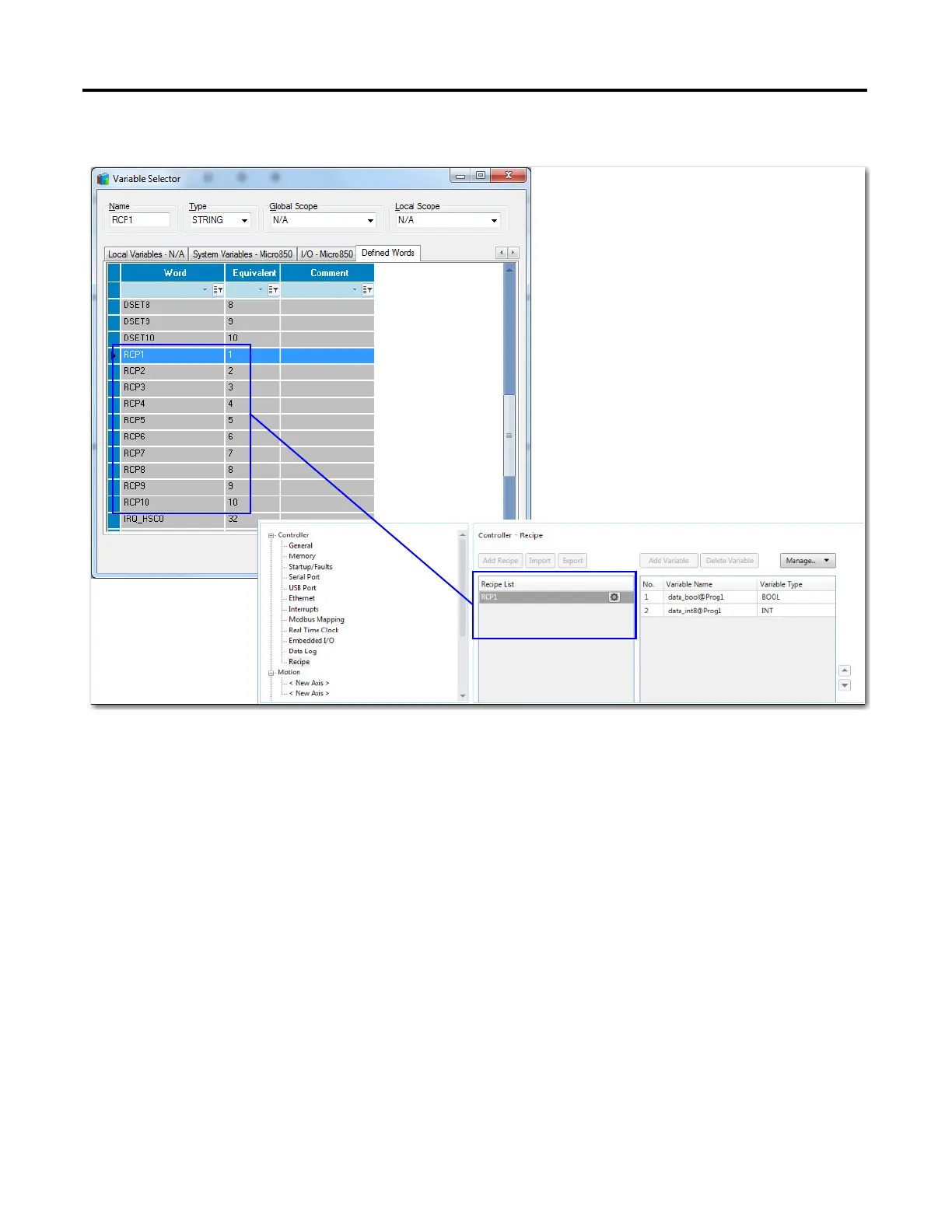

After configuring Recipe, build the program and download to the controller.
