Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 255

Quickstarts Appendix C

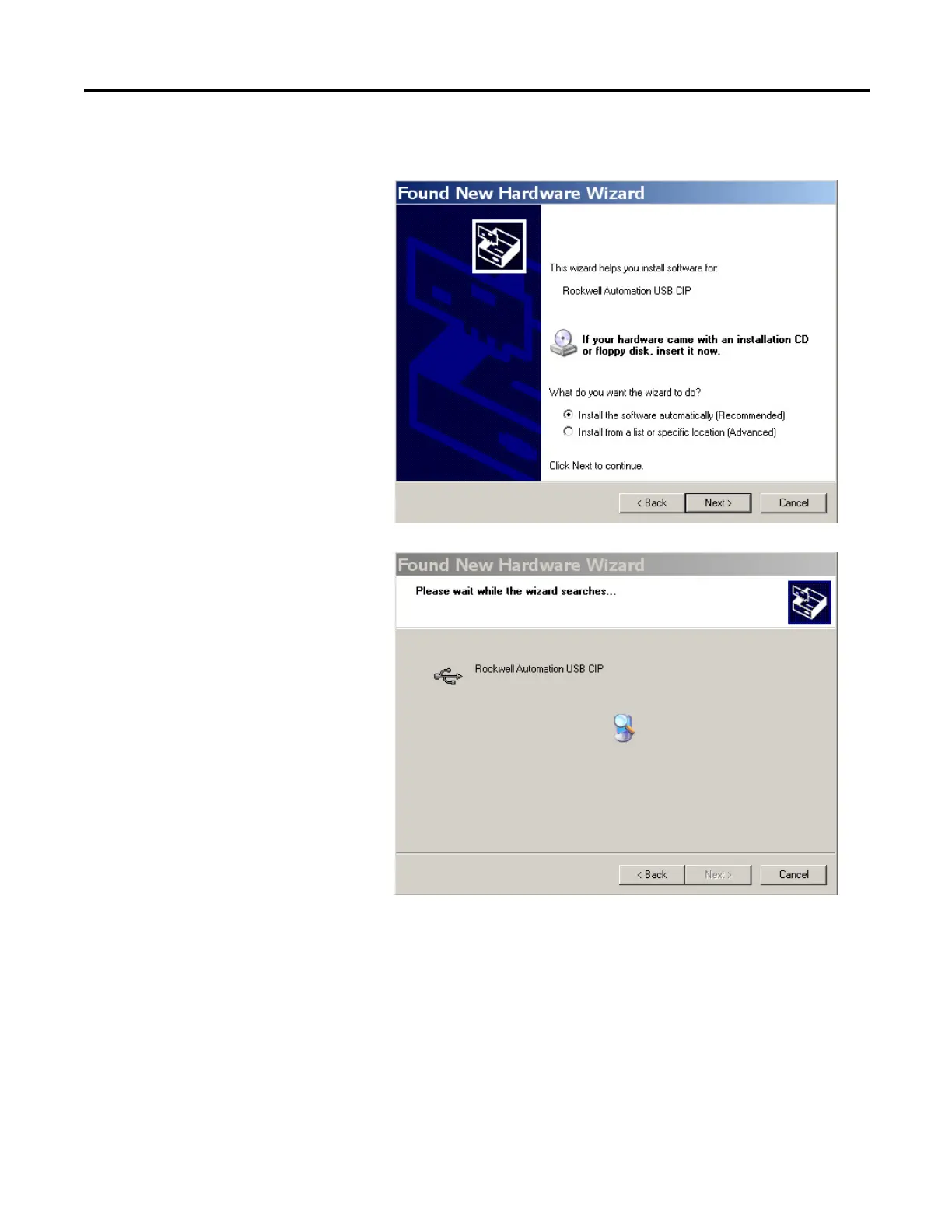

4. Click Install the software automatically (Recommended), and then click

Next.

The Wizard searches for new hardware.
