260 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019

Appendix C Quickstarts

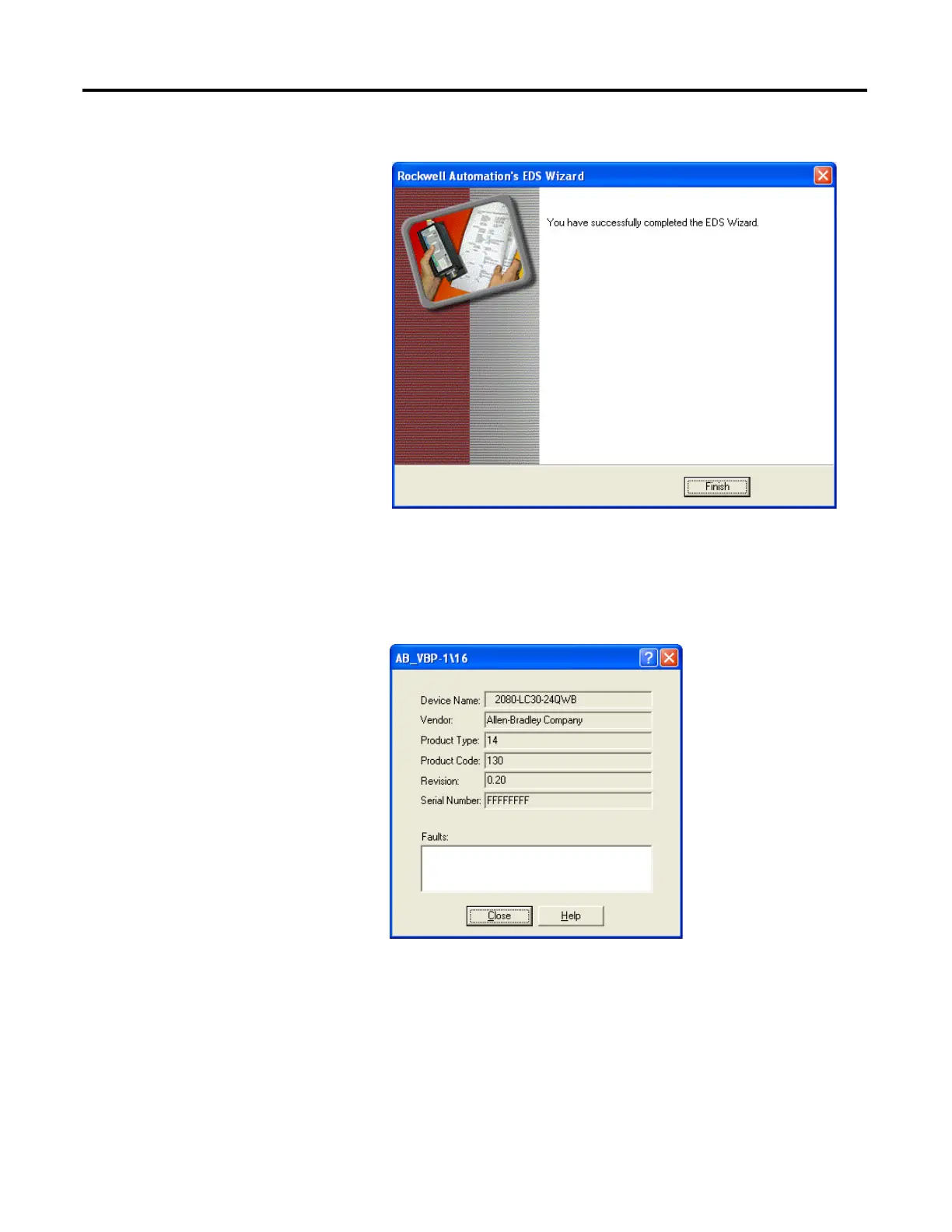

9. Click Finish to complete.

If the Micro830/Micro850/Micro870 still shows up as a 1756 Module,

then you are probably running pre-release firmware which is reporting

itself as Major Revision 0, which does not match the embedded EDS file.

To confirm, right click the device and select Device Properties (firmware

Revision is Major.Minor).
